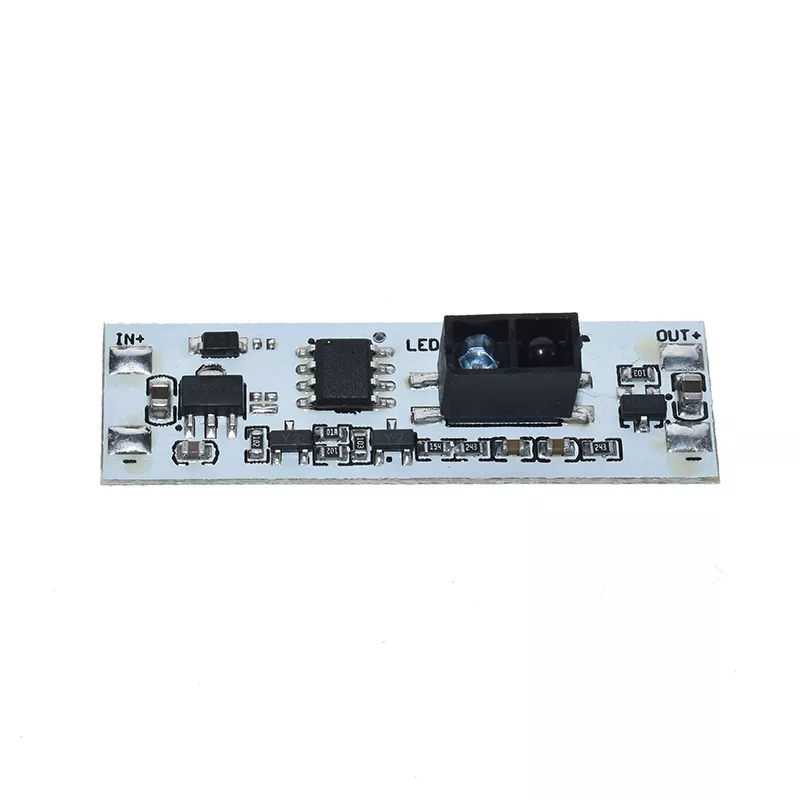

36W Short Range IR Hand Wave ON-OFF Sensor Module LZG-HW-V9

This is IR sensor-based switching module that functions ON and OFF  by sweeping palm over it from 10 to 80 mm distance.

This IR sensor can be used in a variety of applications in household appliances as well as automotive industrial applications.  The sensitivity of the product can be customized, can penetrate plastic, acrylic, glass, ceramic, and another non-metallic medium, stable performance!

---

Specifications and Features

1. Operating voltage: 12vDC
2. Output Voltage: 12 V
3. Output type: Double output
4. Detection range: adjustable 10-80 MM
5. Max Power Load: 36 W
6. Delayed off time: none
7. Field of application: DC, constant pressure
8. Load current: 3A optional
9. Standby current: 10mA
