74HC Series Mosfet Based Logic ICs [DIP-Package]

Introducing the high-speed operation of the 74HCxx series logic ICs Gate highlights their capability- Demanding Requirements of modern electronic systems

The 74HC series logic ICs are versatile, reliable components used in electronics for their compatibility with TTL and CMOS logic, low power consumption, and wide range of functions such as gates, flip-flops, and more. Ideal for digital circuits in various applications, they offer moderate speed performance and come in various package types to suit different design needs.

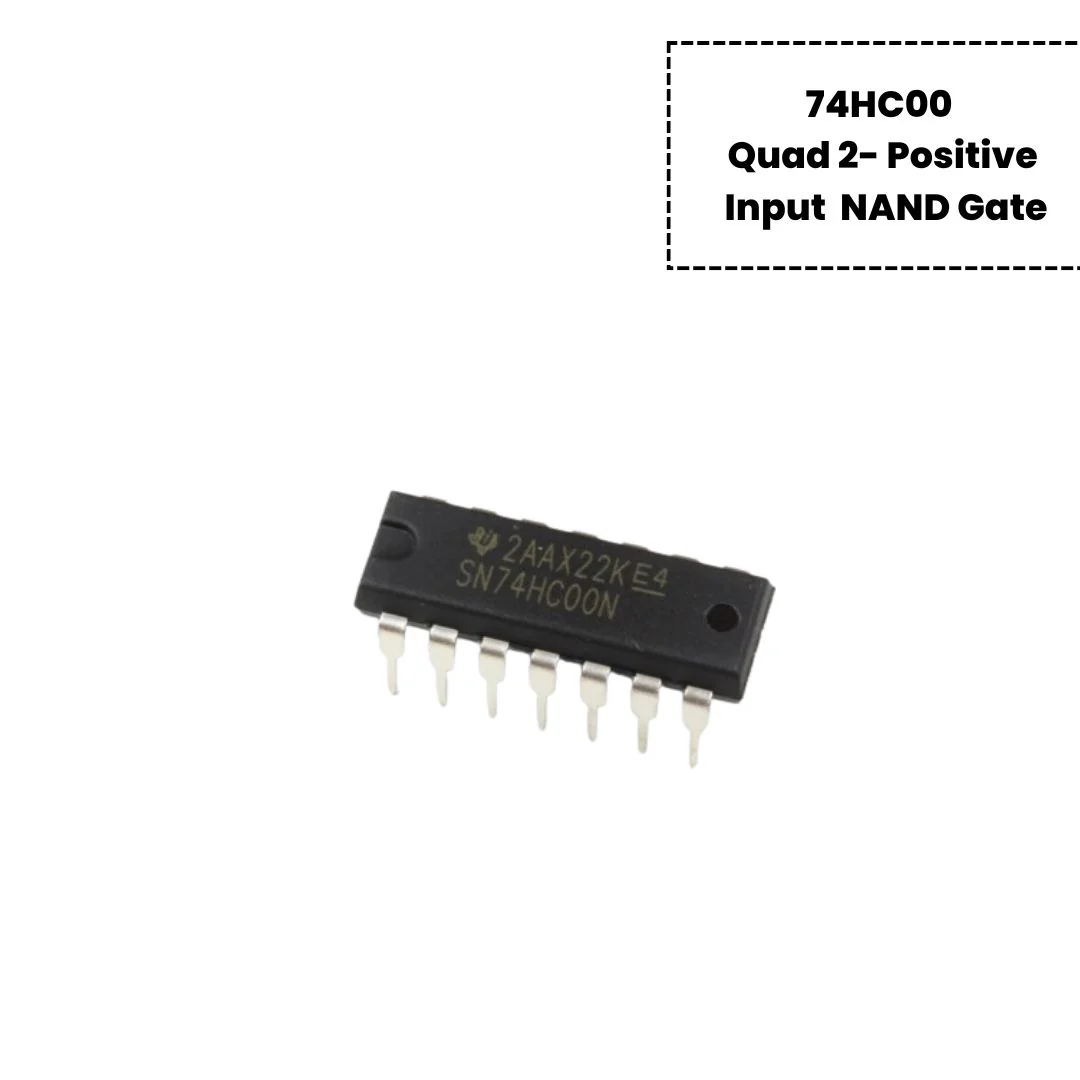

74HC00- Quad 2-Input NAND Gate

Number of Gates: 4
Max. Propagation Delay: 9ns (at 5V)
Input Capacitance: 3.5pF

74HC02- Quad 2: Input NOR Gate

Number of Gates: 4
Max. Propagation Delay: 9ns (at 5V)
Input Capacitance: 3.5pF

74HC04- Hex Inverter

Number of Inverters: 6
Max. Propagation Delay: 8ns (at 5V)
Input Capacitance: 3.5pF

74HC05- Hex Inverter With Open Drain Output

Number of Inverters: 6
Max. Propagation Delay: 8ns (at 5V)
Input Capacitance: 3.5pF

74HC08- Quad 2: Input AND Gate

Number of Gates: 4
Max. Propagation Delay: 9ns (at 5V)
Input Capacitance: 3.5pF

74HC10- Triple 3: Input Positive NAND Gate

Number of Gates: 3
Max. Propagation Delay: 10ns (at 5V)
Input Capacitance: 3.5pF

74HC14- Hex Schmitt-Trigger Inverter

Number of Inverters: 6
Max. Propagation Delay: 14ns (at 5V)
Input Capacitance: 3.5pF

74HC21-Dual 4: Input Positive AND Gate

Number of Gates: 2
Max. Propagation Delay: 10ns (at 5V)
Input Capacitance: 3.5pF

74HC30- High Speed CMOS Logic 8-Input NAND Gate

Number of Gates: 1
Max. Propagation Delay: 13ns (at 5V)
Input Capacitance: 3.5pF

74HC32- Quad 2: Positive Input OR Gate

Number of Gates: 4
Max. Propagation Delay: 9ns (at 5V)
Input Capacitance: 3.5pF

74HC74- Dual D-Type Flip-Flop with Set and Reset

Number of Flip-Flops: 2
Max. Propagation Delay: 15ns (at 5V)
Input Capacitance: 3.5pF

74HC42- BCD to decimal decoder (1-of-10)

Number of Flip-Flops: 4
Max. Propagation Delay: 14ns
Input Capacitance: 5pF

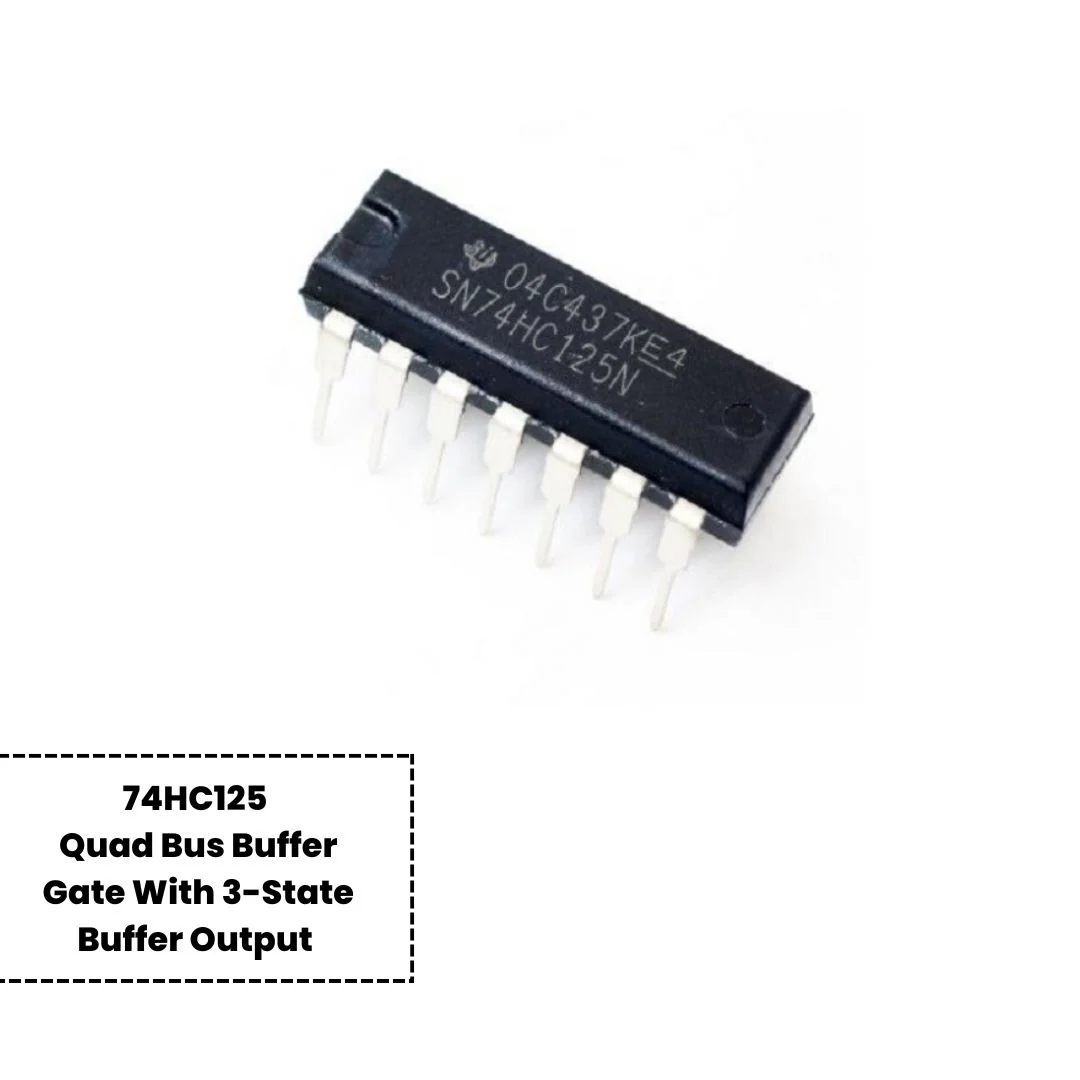

74HC125- Quad 3 State Buffer

Number of Buffers: 4
Max. Propagation Delay: 12ns (at 5V)
Input Capacitance: 3.5pF

74HC126- Quad 3 State Buffer

Number of Buffers: 4
Max. Propagation Delay: 12ns (at 5V)
Input Capacitance: 3.5pF

74HC132- Quadruple Positive-NAND Gates with Schmitt-Trigger Inputs Breadboard

Number of Buffers: 4
Max. Propagation Delay: 14ns (at 5V)
Input Capacitance: 3.5pF

74HC138- 3 to 8 Line Decoder/Demultiplexed

Number of Outputs: 8
Max. Propagation Delay: 16ns (at 5V)
Input Capacitance: 3.5pF

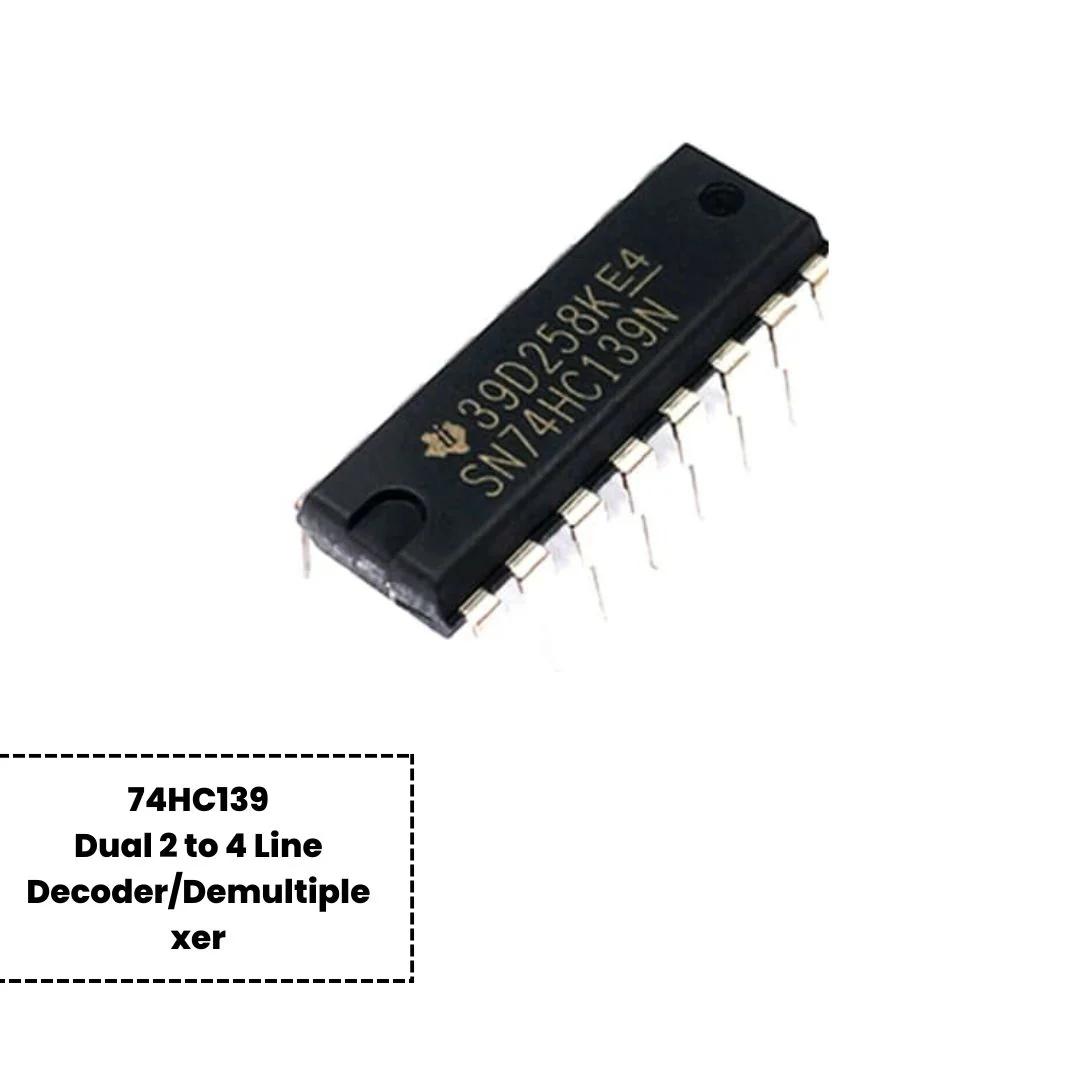

74HC139- Dual 2-Line to 4-Line Decoder/Demultiplexed

Number of Outputs: 4 per decoder
Max. Propagation Delay: 16ns (at 5V)
Input Capacitance: 3.5pF

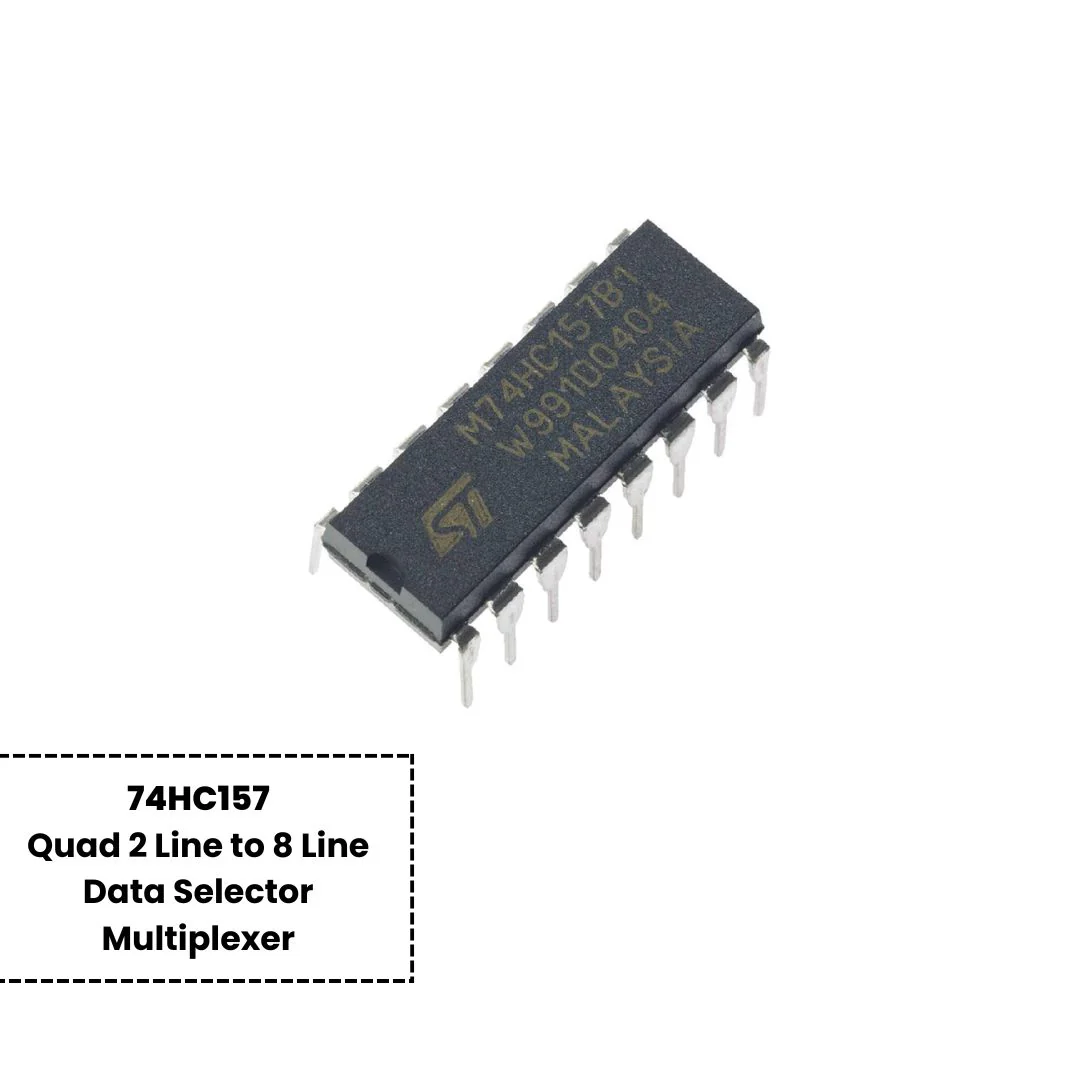

74HC157- Quad 2 to 1 Data Selector/Multiplexer

Number of Multiplexers: 4
Max. Propagation Delay: 14ns (at 5V)
Input Capacitance: 3.5pF

74HC163- Synchronous 4-bit Binary Counter

Number of Multiplexers: 4
Max. Propagation Delay: 14ns (at 5V)
Input Capacitance: 3.5pF

74HC164- 8 Bit Serial-In/Parallel-Out Shift Register

Function: Serial-in/parallel-out shift register
Max. Propagation Delay: 28ns (at 5V)
Input Capacitance: 3.5pF

74HC165- 8 Bit Parallel-In/Serial-Out Shift Register

Function: Parallel-in/serial-out shift register
Max. Propagation Delay: 28ns (at 5V)
Input Capacitance: 3.5pF

74HC174- Hex D-Type Flip-Flops with Clear

Max. Propagation Delay: 14ns (at 5V)
Input Capacitance: 3.5pF

74HC244- Octal 3 State Noninverting Buffer/Line Driver/Line Receiver

Max. Propagation Delay: 14ns (at 5V)
Input Capacitance: 3.5pF

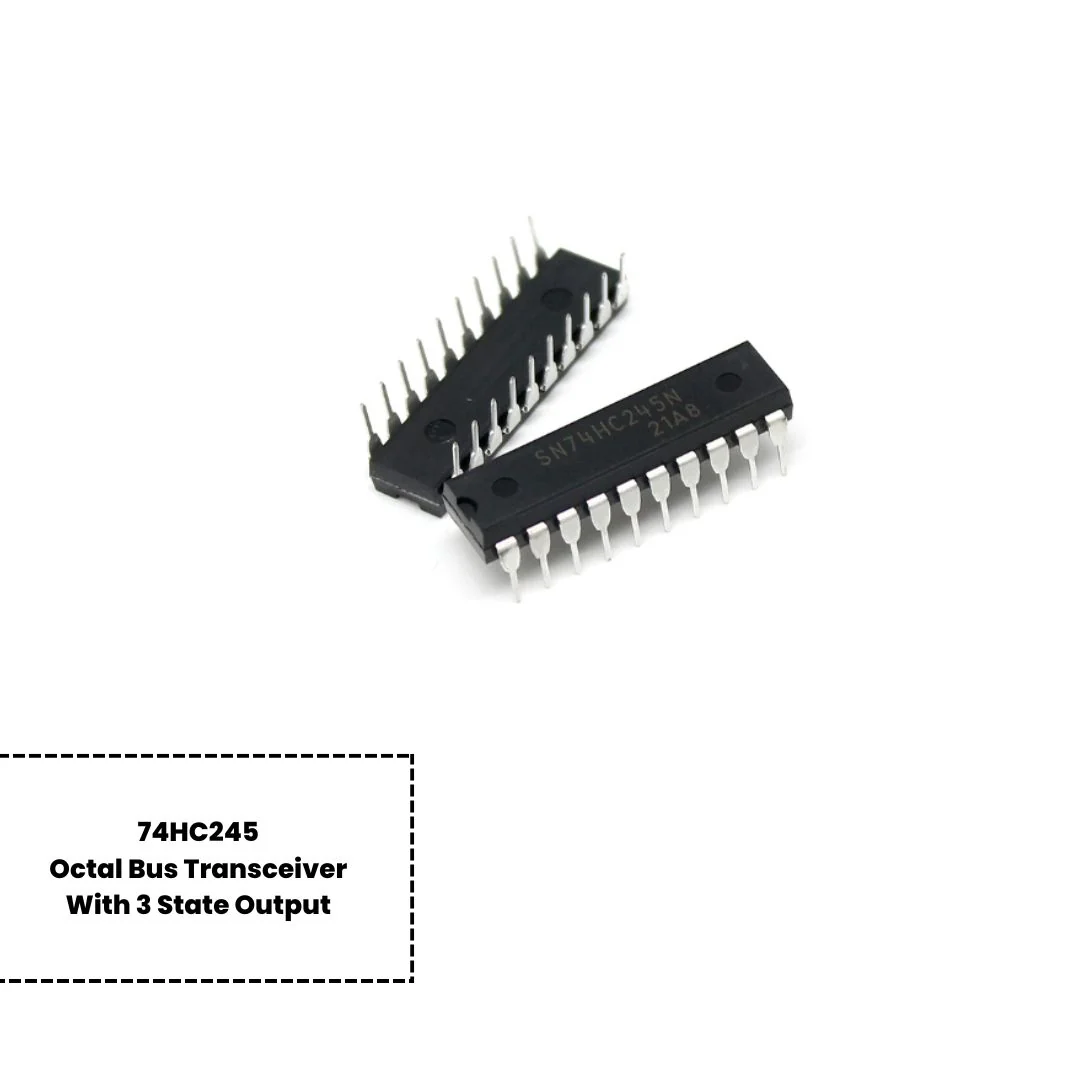

74HC245- Octal Bus Transceiver

Number of Transceivers: 8
Max. Propagation Delay: 12ns (at 5V)
Input Capacitance: 3.5pF

74HC273- Octal D-Type Flip-Flop With 3 States Output

Number of Flip-Flops: 8
Max. Propagation Delay: 20ns (at 5V)
Input Capacitance: 3.5pF

74HC373- Octal D-Type Transparent Latch

Number of Latches: 8
Max. Propagation Delay: 20ns (at 5V)
Input Capacitance: 3.5pF

74HC374 - Octal D-Type Flip-Flop with 3-State Outputs

Number of Flip-Flops: 8
Max. Propagation Delay: 20ns (at 5V)
Input Capacitance: 3.5pF

74HC393 - Dual 4-Bit Binary Counter

Function: Dual 4-bit binary counter
Max. Propagation Delay: 24ns (at 5V)
Input Capacitance: 3.5pF

74HC573 - Octal D-Type Transparent Latch

Function: Dual 4-bit binary counter
Max. Propagation Delay: 24ns (at 5V)
Input Capacitance: 3.5pF

74HC574 - Tri State Octal D-Type Flip-Flop IC

Max. Propagation Delay: 18ns (at 5V)
Input Capacitance: 3.5pF

74HC595- Bit Serial to Parallel Shift Register

Function: Serial-in/serial or parallel-out shift register with latches
Max. Propagation Delay: 30ns (at 5V)
Input Capacitance: 3.5pF

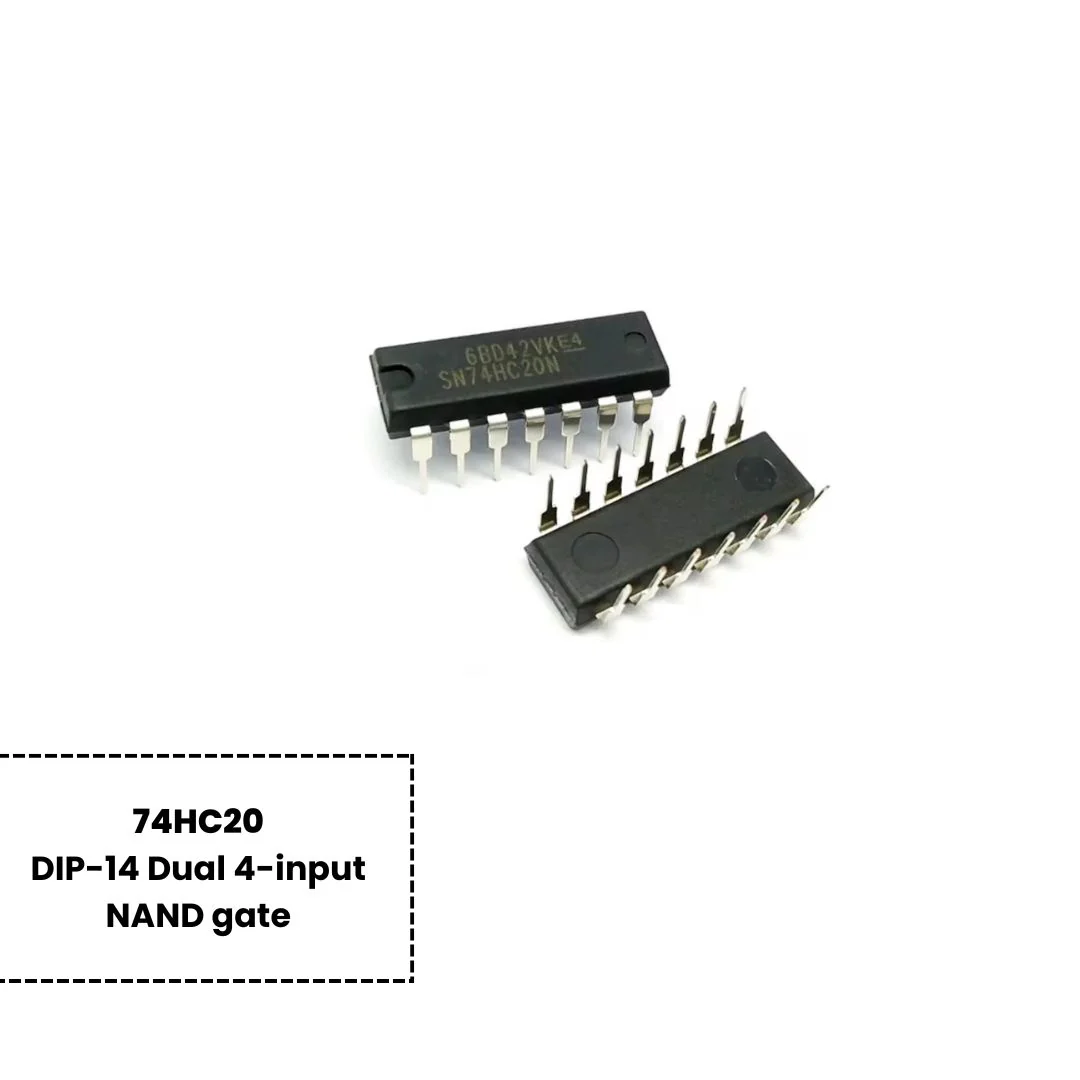

74HC20- DIP-14 Dual 4-input NAND gate

Function: DIP-14 Dual 4-input NAND gate
Max. Propagation Delay: 9ns (at 5V)
Input Capacitance: 3.5pF

74HC154- DIP-14 Dual 4-input NAND gate

Max. Propagation Delay: 23ns (at 5V)
Input Capacitance: 3.5pF

"Upgrade your digital electronics with our selection of advanced 74LS Series MOSFET-based logic ICs."
