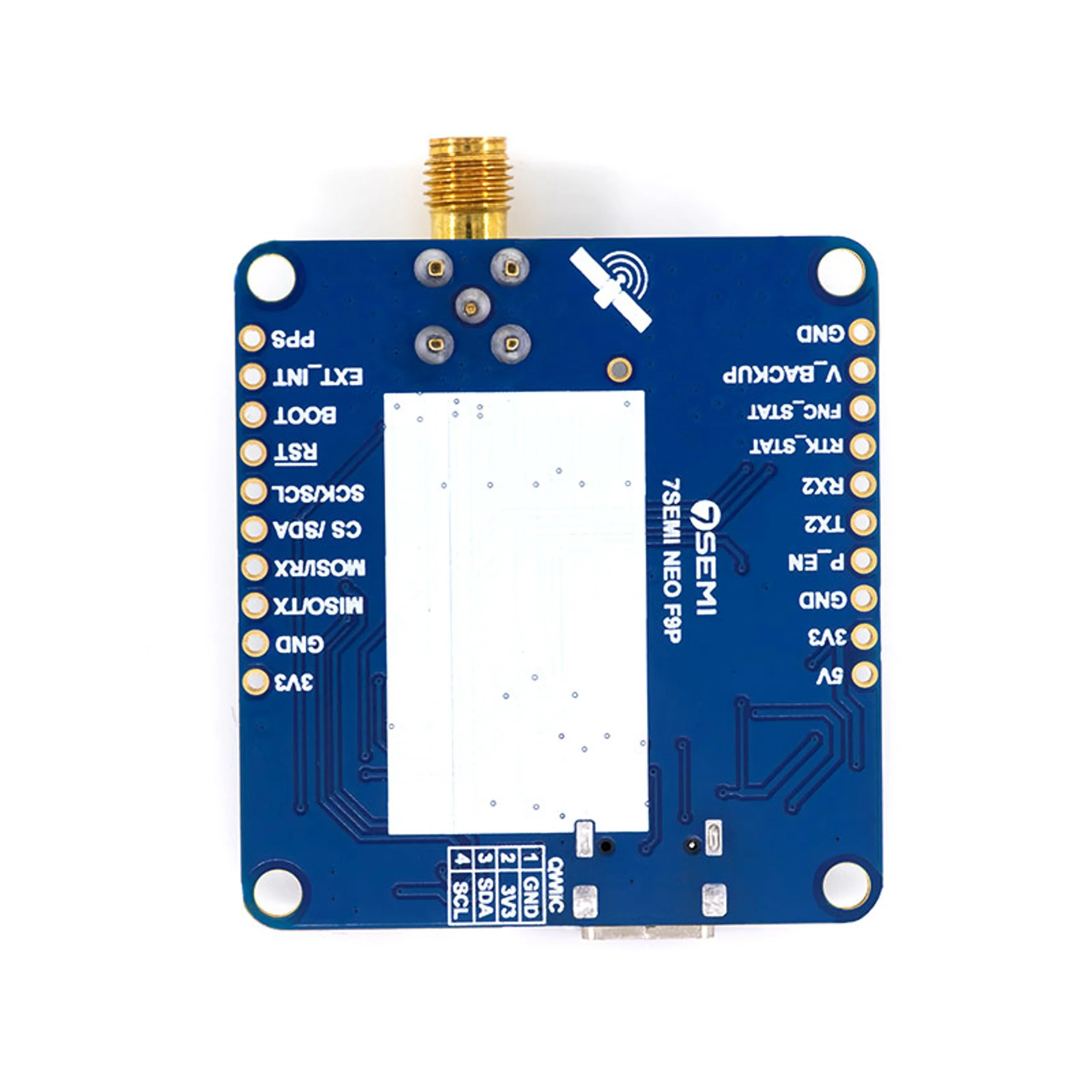

GPS-RTK-SMA Breakout-ZED-F9P

The 7Semi ZED-F9P Dual-Band GPS RTK SMA Modem is a cutting-edge GNSS solution that brings centimeter-level accuracy to your industrial, consumer, and automation applications. Powered by the u-blox F9 high-precision GNSS module, this dual-band modem combines reliability, efficiency, and advanced features to cater to high-performance requirements. Whether you need precise navigation, real-time kinematics (RTK), or moving base support, this modem delivers unmatched accuracy and versatility.

Designed for seamless integration, the ZED-F9P module enables fast time-to-market for your products while offering unparalleled performance. With concurrent reception of all GNSS constellations and native support for PointPerfect technology, this modem ensures quick and reliable positioning with minimal power consumption. Its small size and energy efficiency make it a perfect fit for diverse use cases, from UAVs to moving platforms and industrial-grade automation systems.

The ZED-F9P modem is uniquely equipped with moving base support, allowing both the base and rover units to move while maintaining precise positioning. This capability is ideal for UAVs, enabling applications like autonomous landing on moving platforms or following a designated object. Additionally, the modem supports attitude sensing, leveraging the relative positioning of base and rover modules to derive precise orientation data for vehicles and tools.

For high-precision GPS requirements, the 7Semi ZED-F9P modem offers survey-in mode, enabling base station operation and RTCM 3.x correction data generation. Its comprehensive communication interfaces, including USB-C, UART, I2C, and SPI, simplify connectivity to various systems. The Qwiic connector ensures solder-free integration, while the SMA connector and built-in coin cell battery holder enhance its functionality and usability.

Key Features of the 7Semi ZED-F9P Dual-Band GPS RTK SMA Modem:

• High Precision: Centimeter-level accuracy with multi-band GNSS support, enabling advanced RTK and PPP-RTK capabilities.
• Concurrent GNSS Reception: Simultaneous use of multiple constellations for faster and more reliable positioning.
• Moving Base Support: Compute relative positions even when both base and rover are in motion, ideal for UAVs and dynamic platforms.
• Easy Integration: Compact design with native support for PointPerfect, Qwiic connector, USB-C, UART, I2C, and SPI interfaces.
• Survey-In Mode: Built-in base station functionality with RTCM 3.x correction data generation for precise measurements.
• Energy Efficient: Small size and low power consumption for seamless integration into industrial and consumer-grade products.
• Advanced Configuration Options: Customizable geofencing, variable update rates (up to 20Hz), and high-precision RTK solutions.
• Battery Backup: Coin cell holder for retaining configurations and satellite data, enabling quick warm starts.
