Hot Cutting Nichrome Heating Coils Resistor Wire for DIY

Nichrome is a special nickel and chromium alloy. Cr20Ni80 belongs to a kind of electro thermal alloy, which has stable structure and electrical physical performance, in addition, good high temperature mechanical property, fine could plastic deformation and weld ability, as a result of which. it cannot have the brittle fracture due to long-term use. The alloy is widely used in manufacturing the household appliances and heating elements below the working temperature of 1000'C.

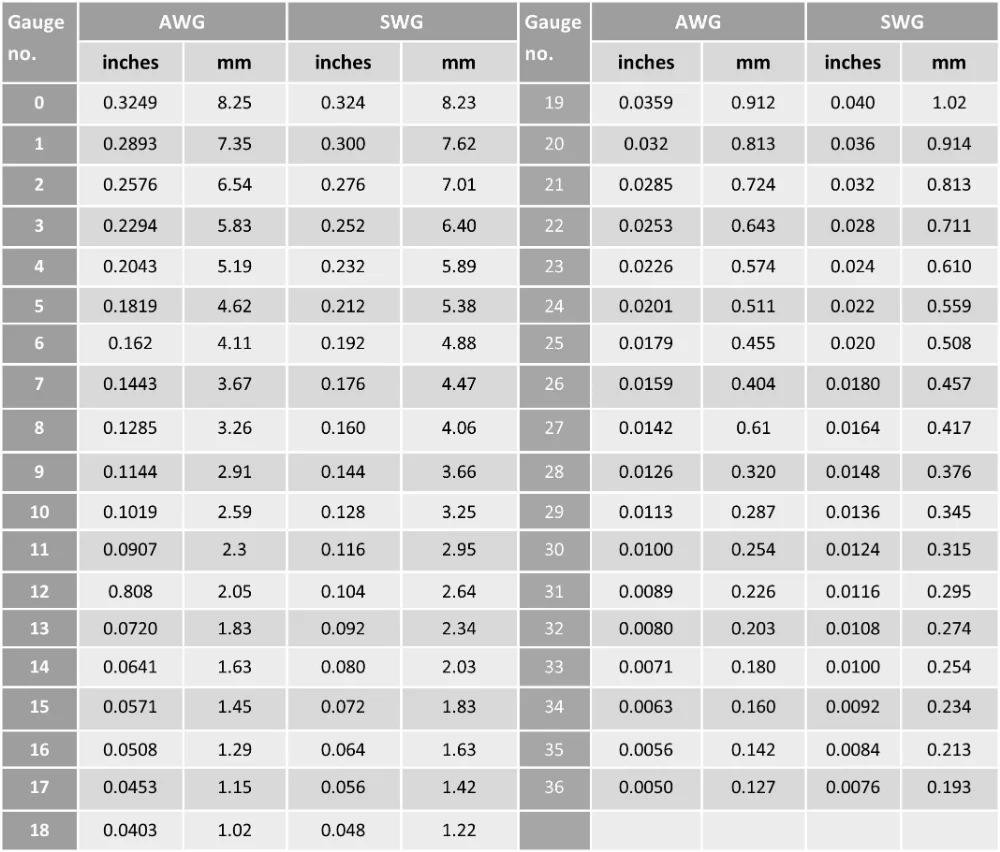

SWG Gauge	MM	Grams in 1-Meter (Approx.)	Meters in 1kg (Approx.)
21swg	0.813mm	3.75gms	266meters
24swg	0.559mm	1.77gms	562meters
26swg	0.457mm	1.19gms	840meters
28swg	0.376mm	0.80gms	1242meters
32swg	0.274mm	0.66gms	1500meters
