Wireless IR TSOP Sensor Relay Module for Remote-Controlled Automation

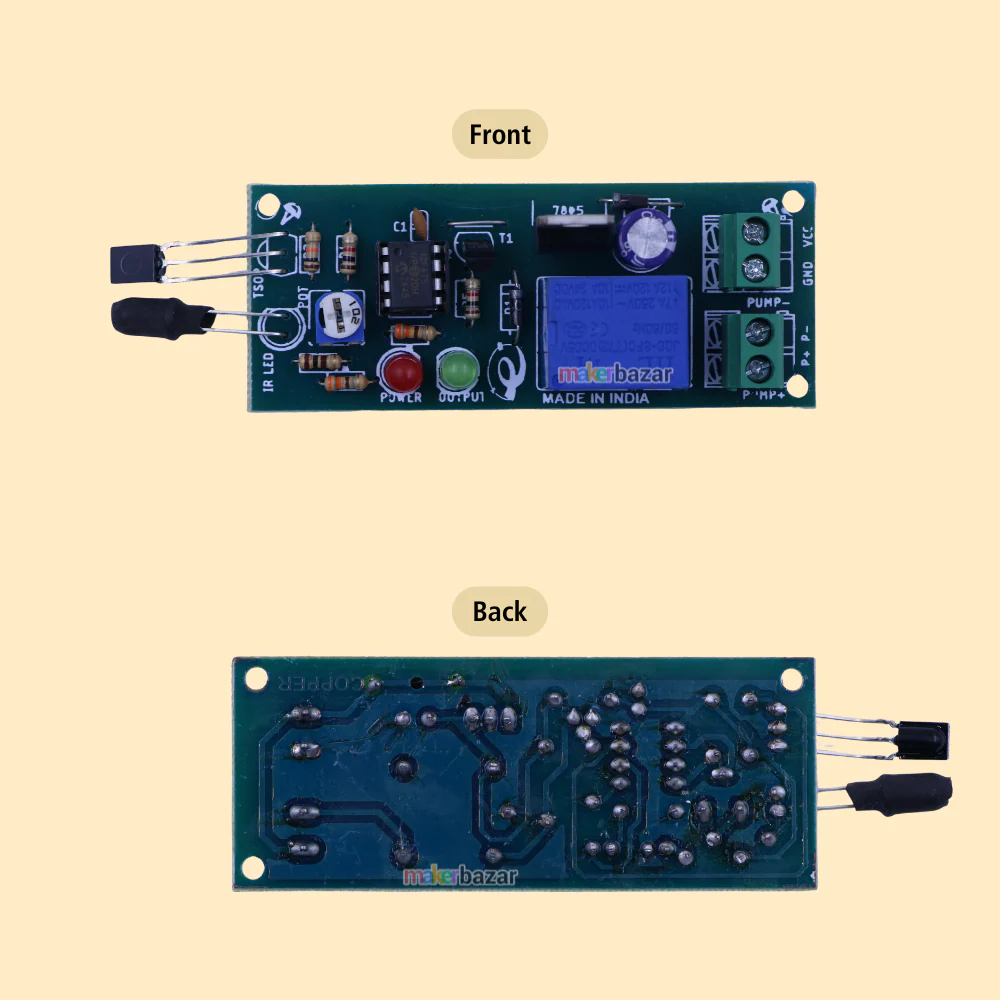

The IR TSOP Sensor Relay Module is a smart solution for controlling AC and DC appliances using a standard IR remote. It uses a TSOP infrared receiver to detect IR signals and triggers an onboard relay to switch loads like lights, fans, pumps, or other devices. Designed for home automation, DIY electronics, and student projects, this module provides an easy and efficient way to implement remote-controlled switching without complex coding.

---

⭐ Key Features

• Onboard TSOP IR sensor for receiving infrared signals

• Relay driver circuit for switching AC/DC loads

• Compatible with most IR remotes (TV/DVD remotes etc.)

• Adjustable sensitivity control via potentiometer

• LED indicators for power and output status

• Simple plug-and-play design, no programming required

• Ideal for home automation, student projects & DIY electronics

---

🔧 Technical Specifications

• Operating Voltage: 5V DC

• Relay Output: AC 220V / DC 30V (10A max, relay dependent)

• Sensor: TSOP IR receiver

• Control Range: Up to 5–8 meters (line of sight, remote dependent)

• Onboard Indicators: Power LED & Output LED

• Adjustments: Potentiometer for sensitivity tuning

• Applications:

  • Remote-controlled lights & fans

  • Wireless pump controller

  • DIY automation systems

  • IR-controlled home appliances

  • Academic electronics projects
