2510 Male/Female Relimate Connector For PCB Board

DIP RMC Male/ Female Housing Connector-Molex KF2510 /KK 254 / KK .100

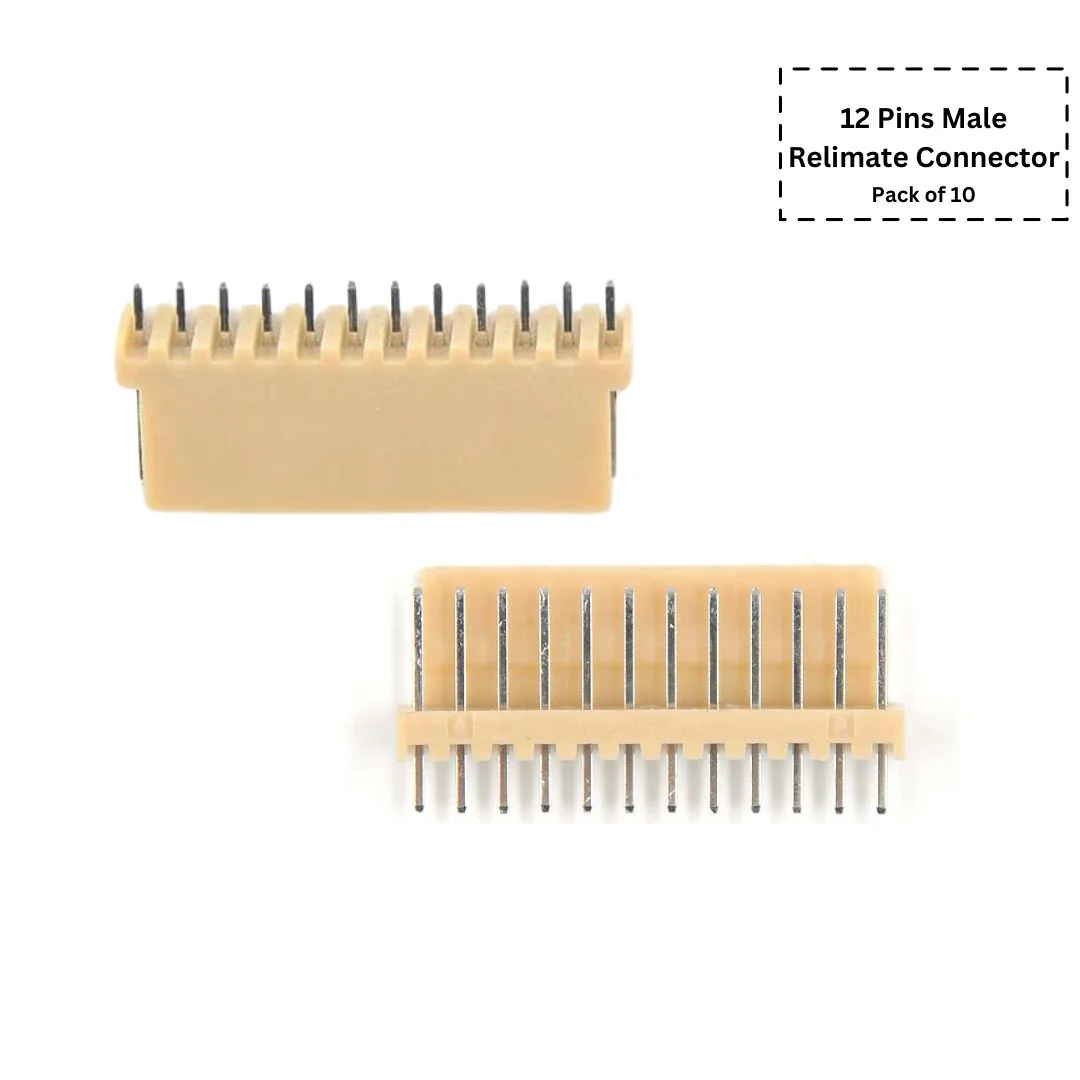

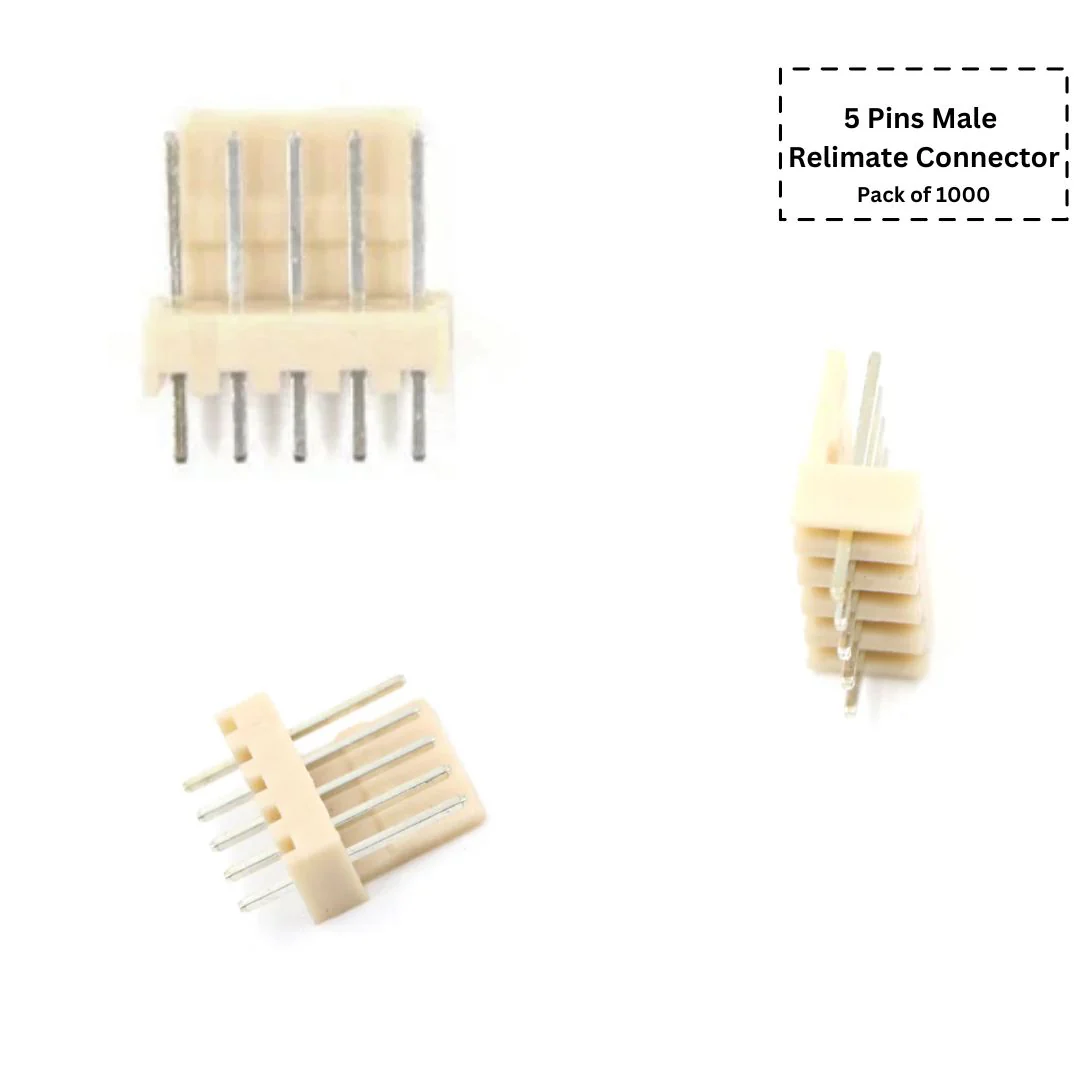

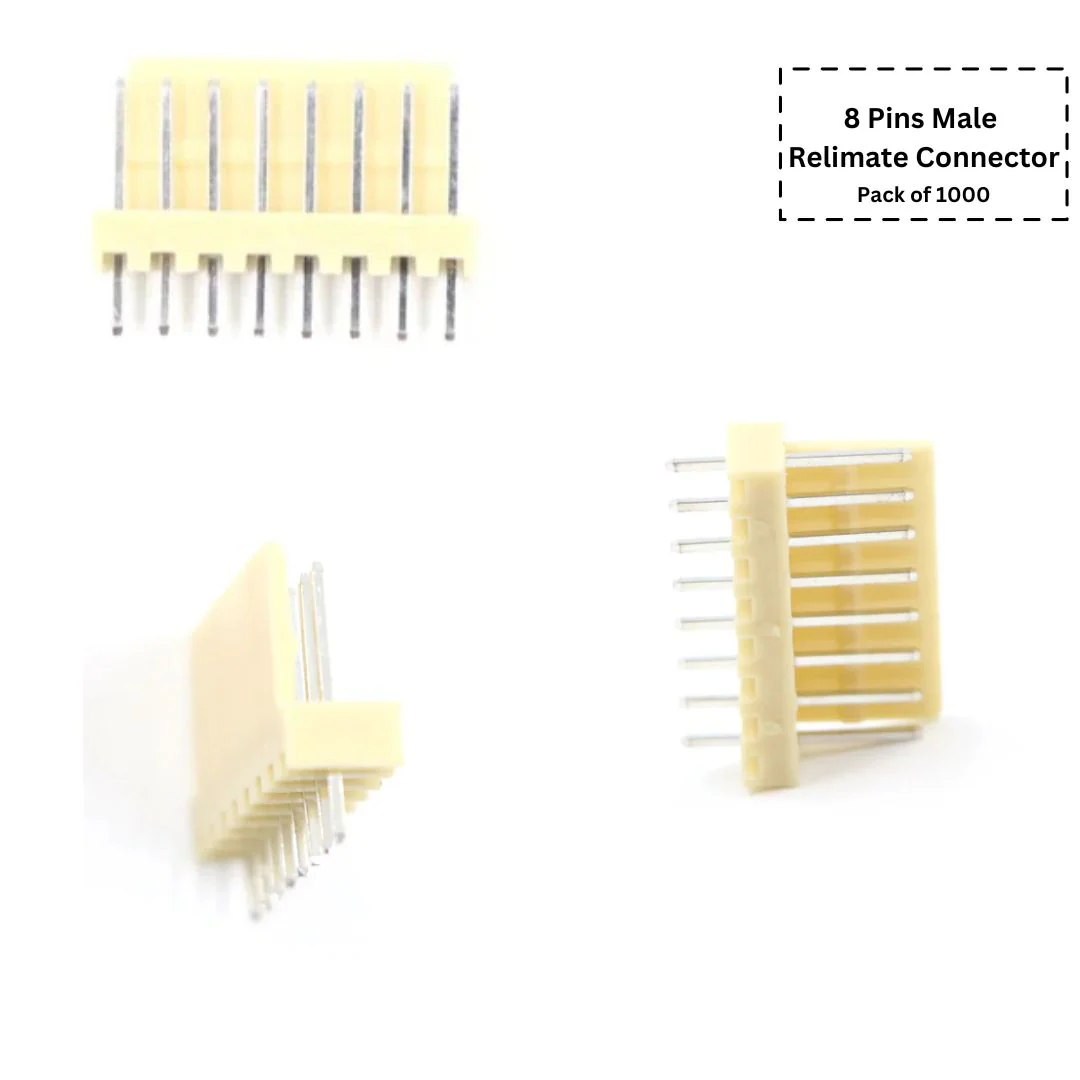

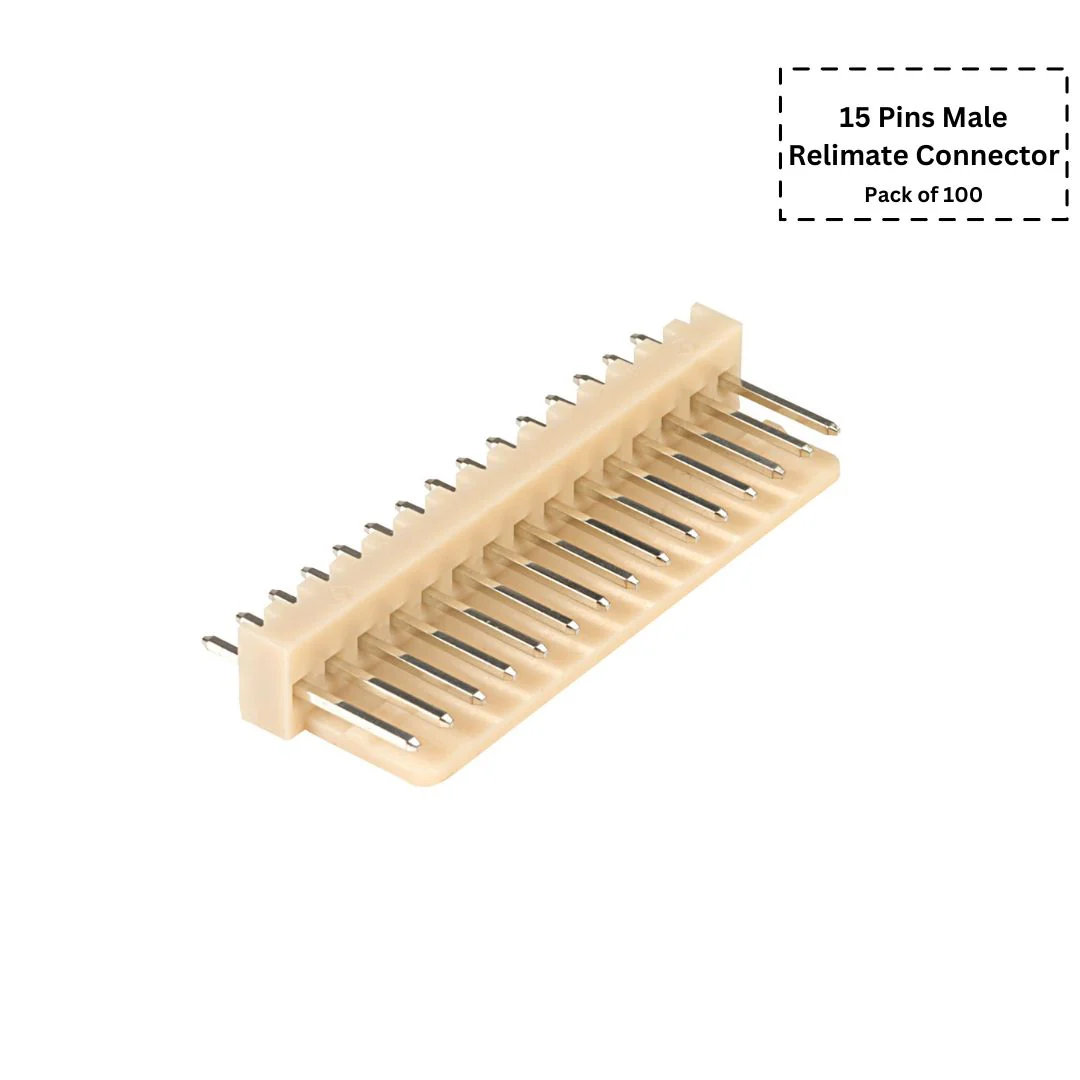

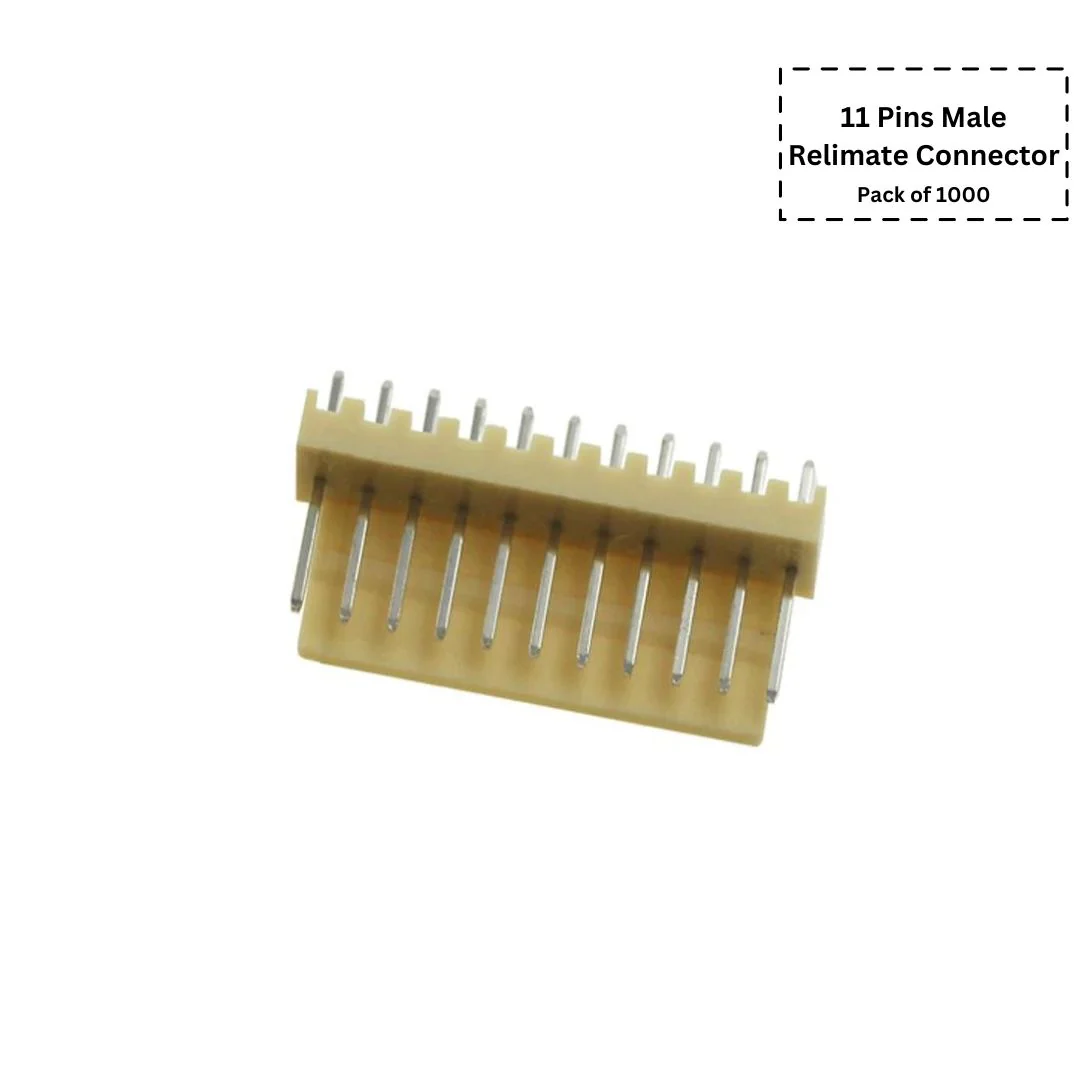

Male Relimate Connector

A male Relimate connector is typically mounted on the PCB. It has pins that protrude and are designed to fit into the corresponding female connector. The key features of a male Relimate connector include:

1. Pins: Metal pins that extend from the connector, which are inserted into the PCB through holes and soldered in place. These pins are often gold-plated for better conductivity and corrosion resistance.
2. Housing: Made from plastic or other insulating materials, the housing holds the pins in place and ensures they are correctly aligned.
3. Pitch: The distance between the centers of adjacent pins, which is typically measured in millimeters (e.g., 2.54mm, 2.0mm). This must match the pitch of the corresponding female connector.
4. Mounting Style: Typically through-hole (pins go through the PCB) or surface mount (pins sit on the PCB surface).

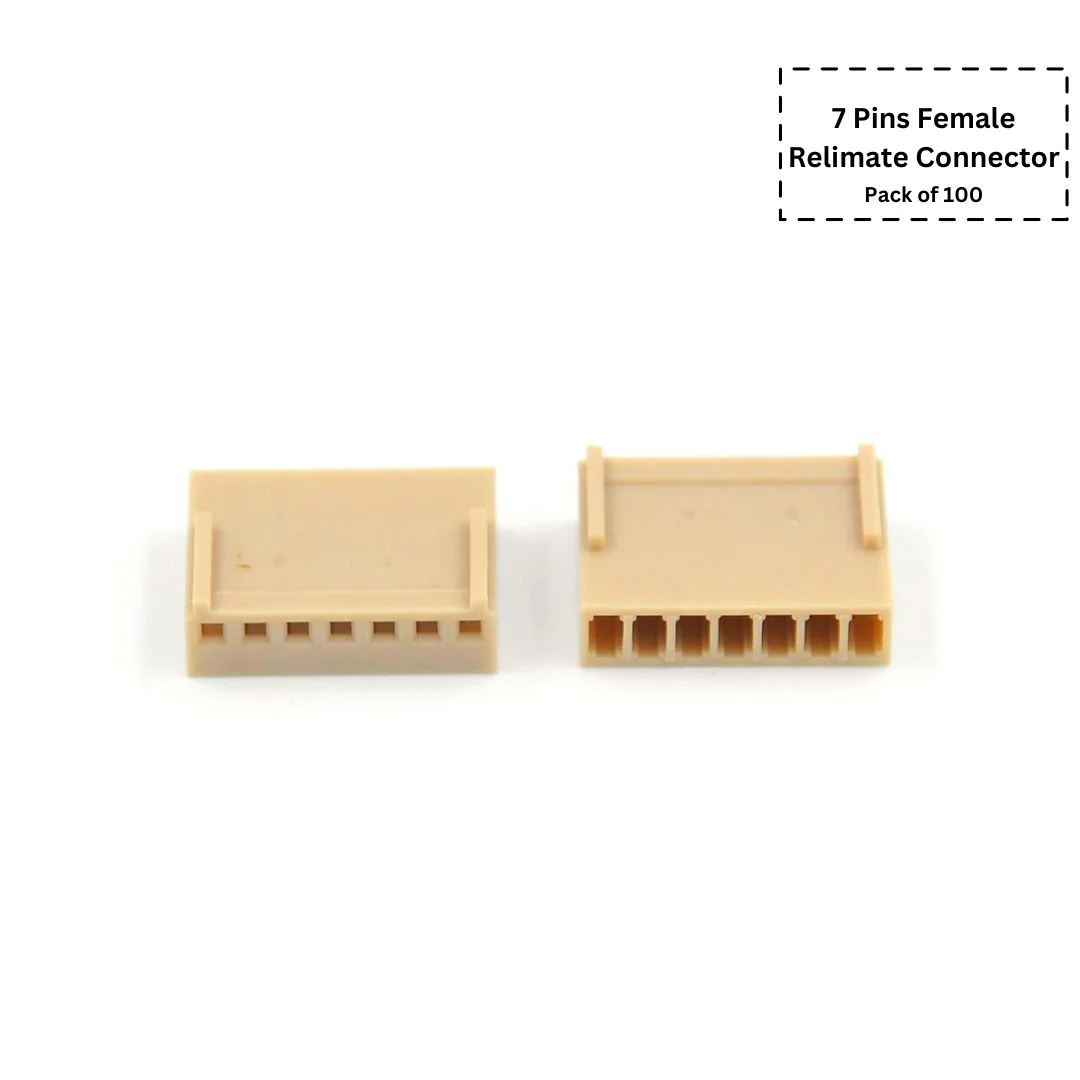

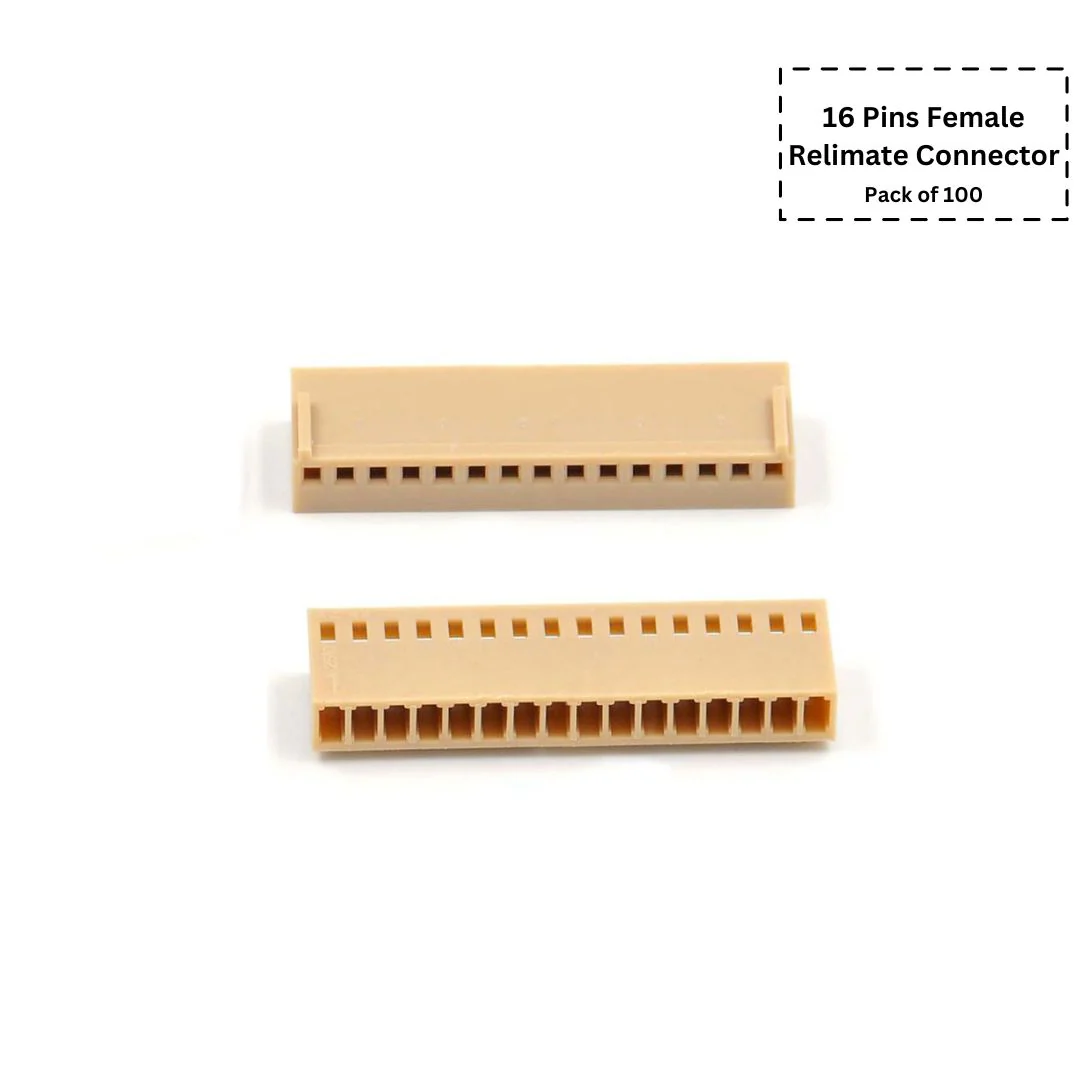

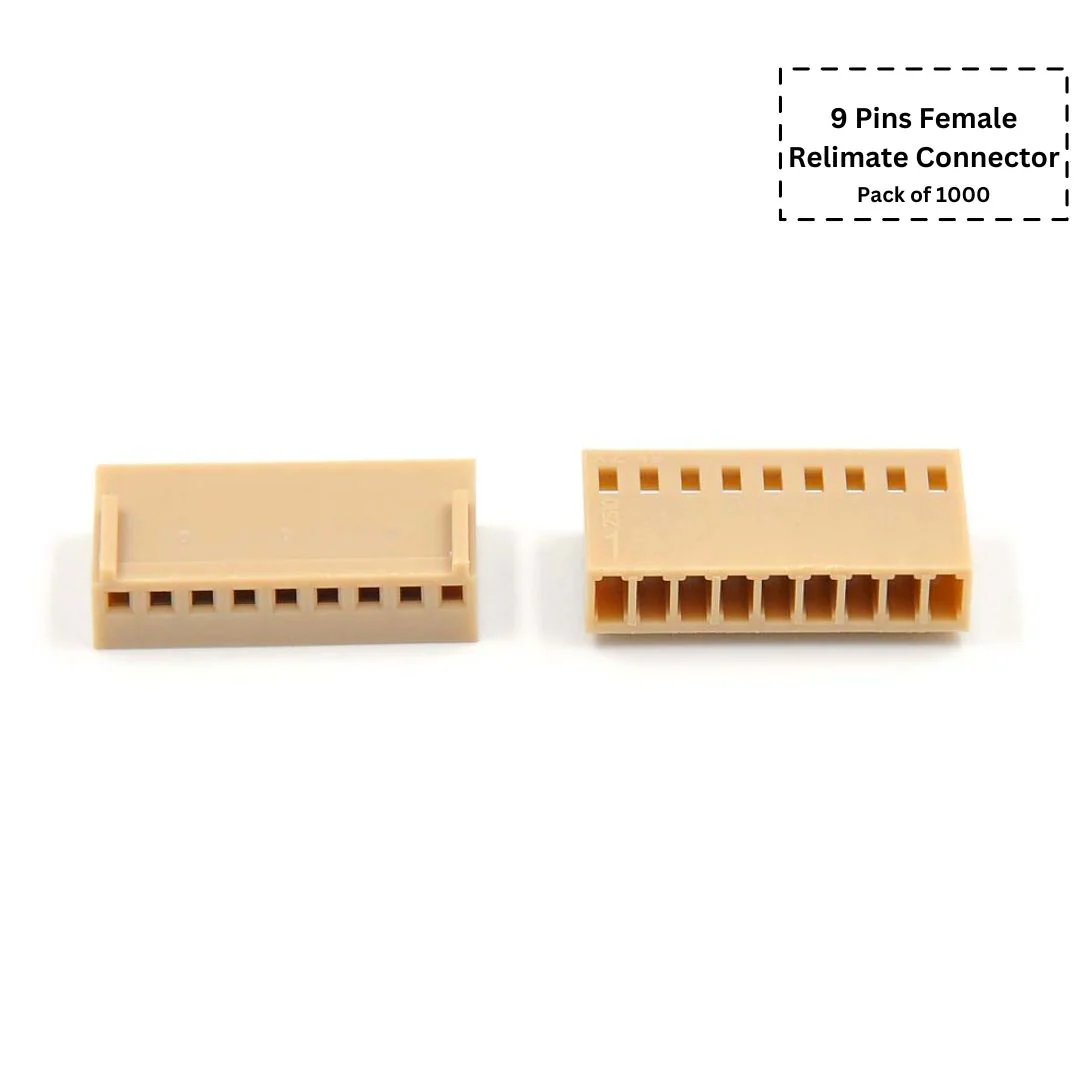

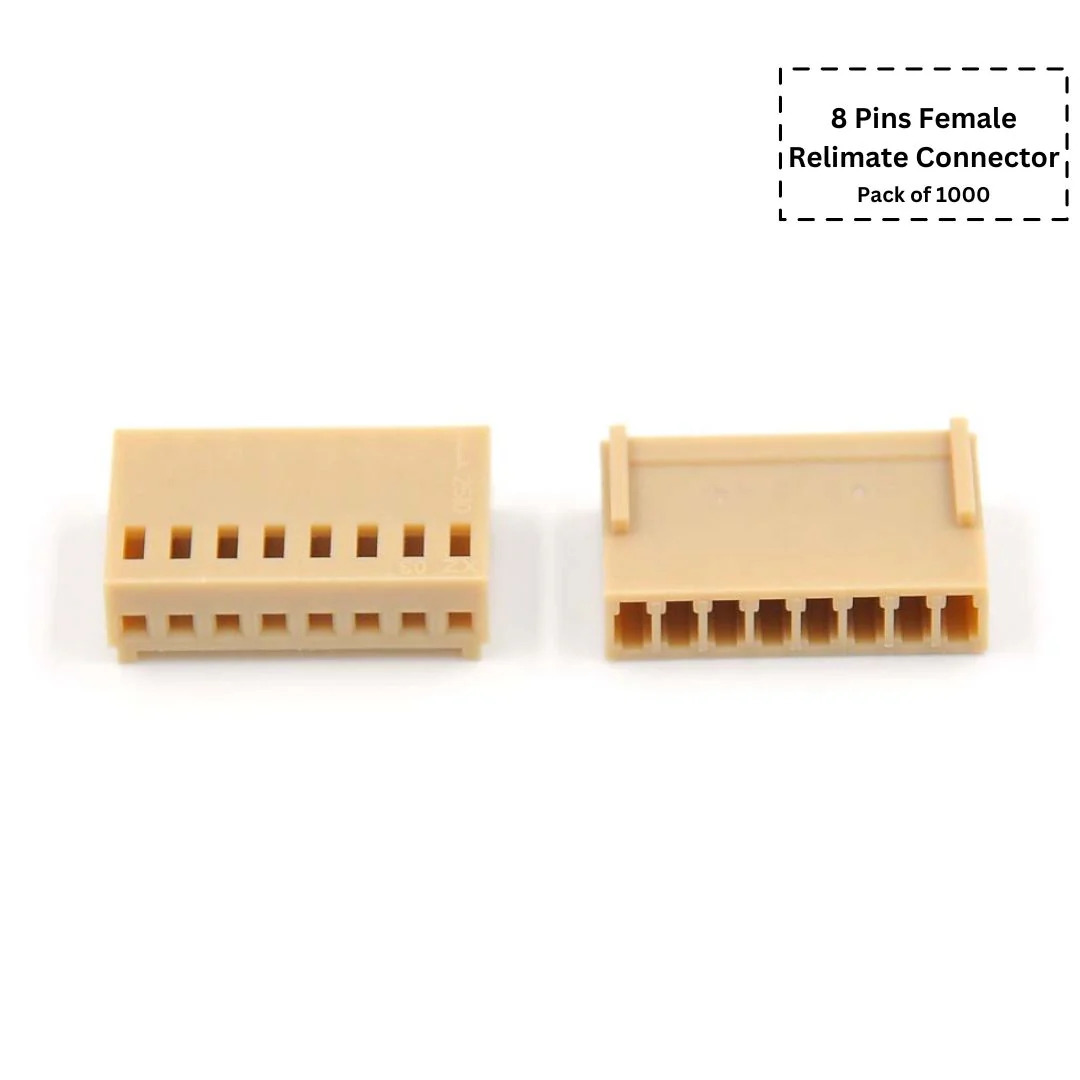

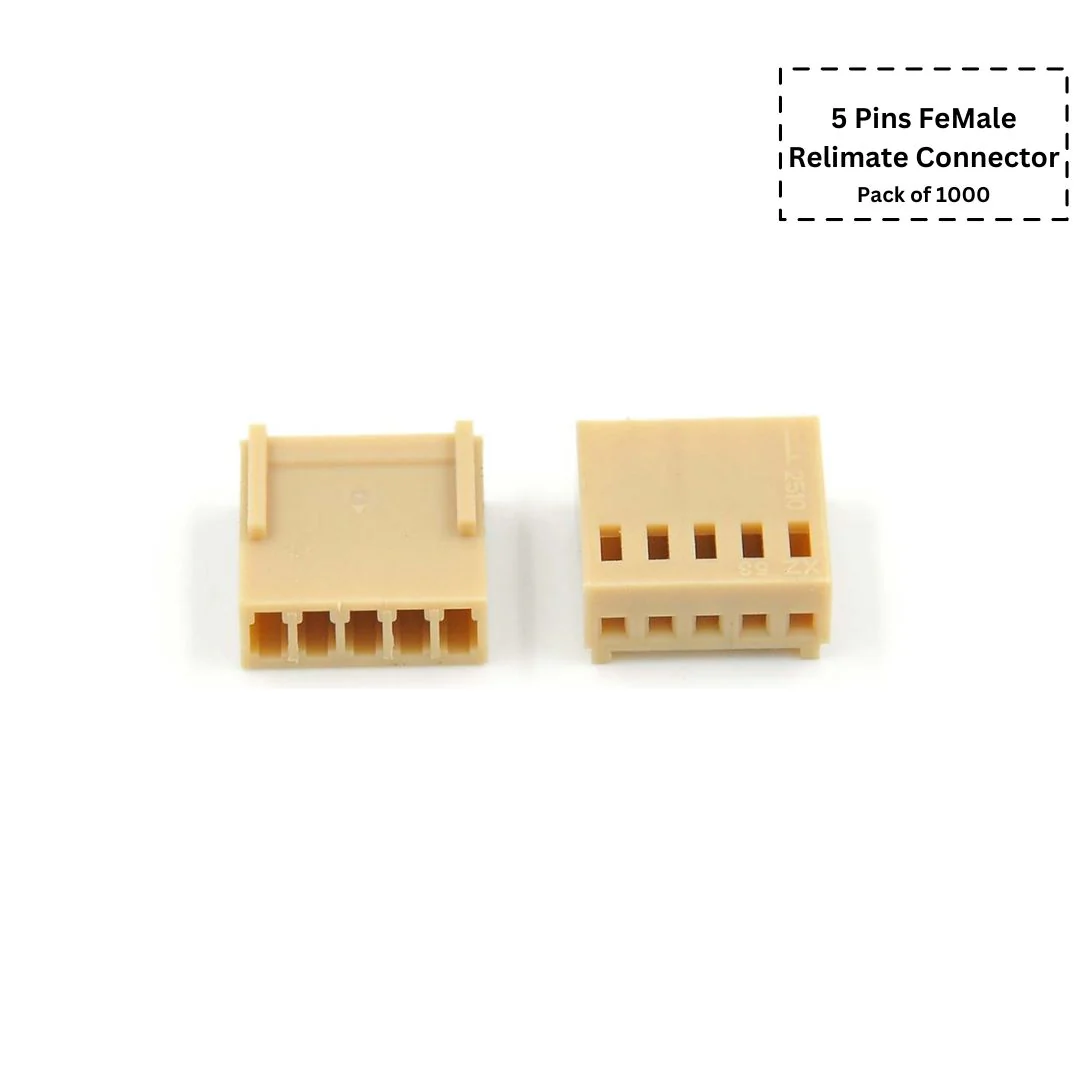

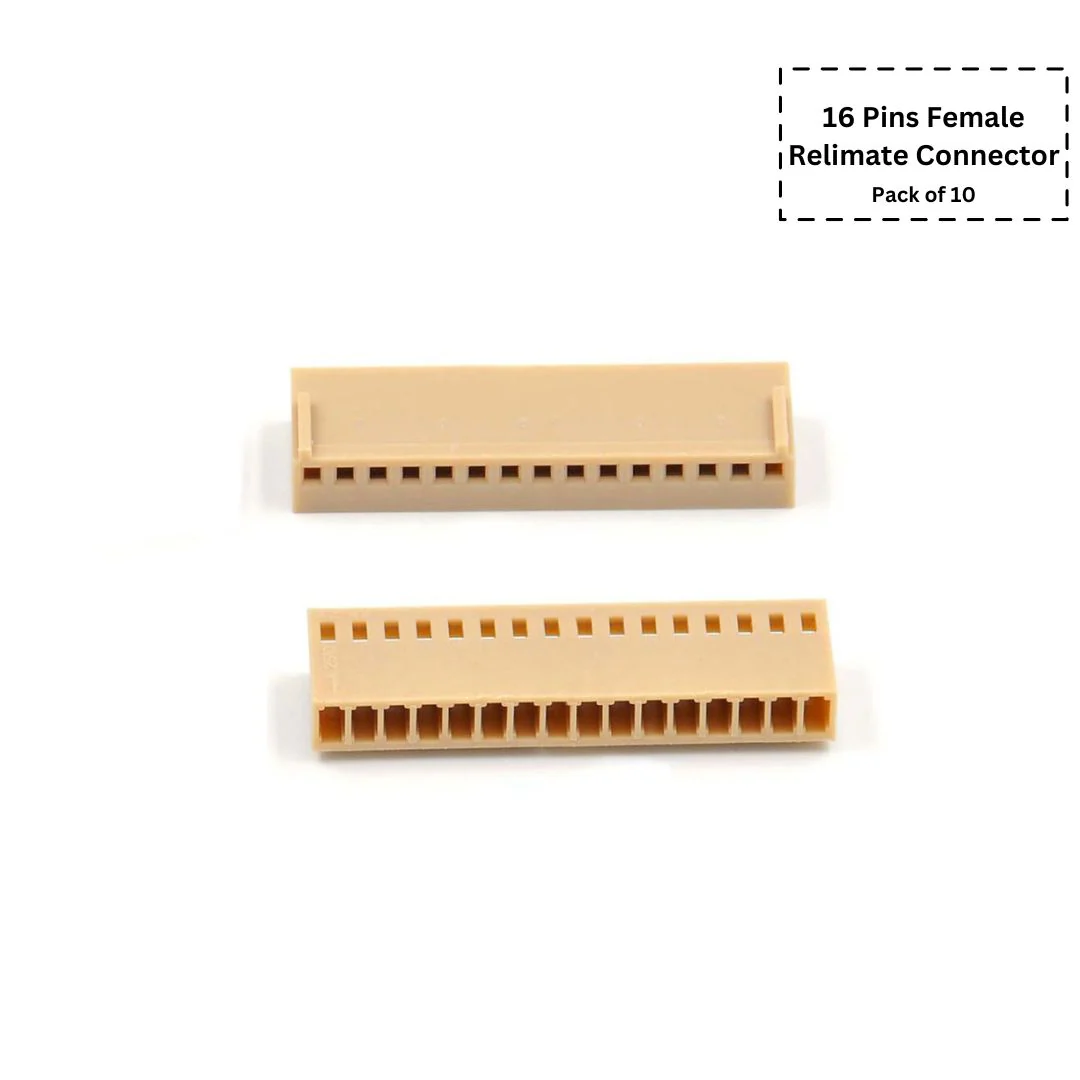

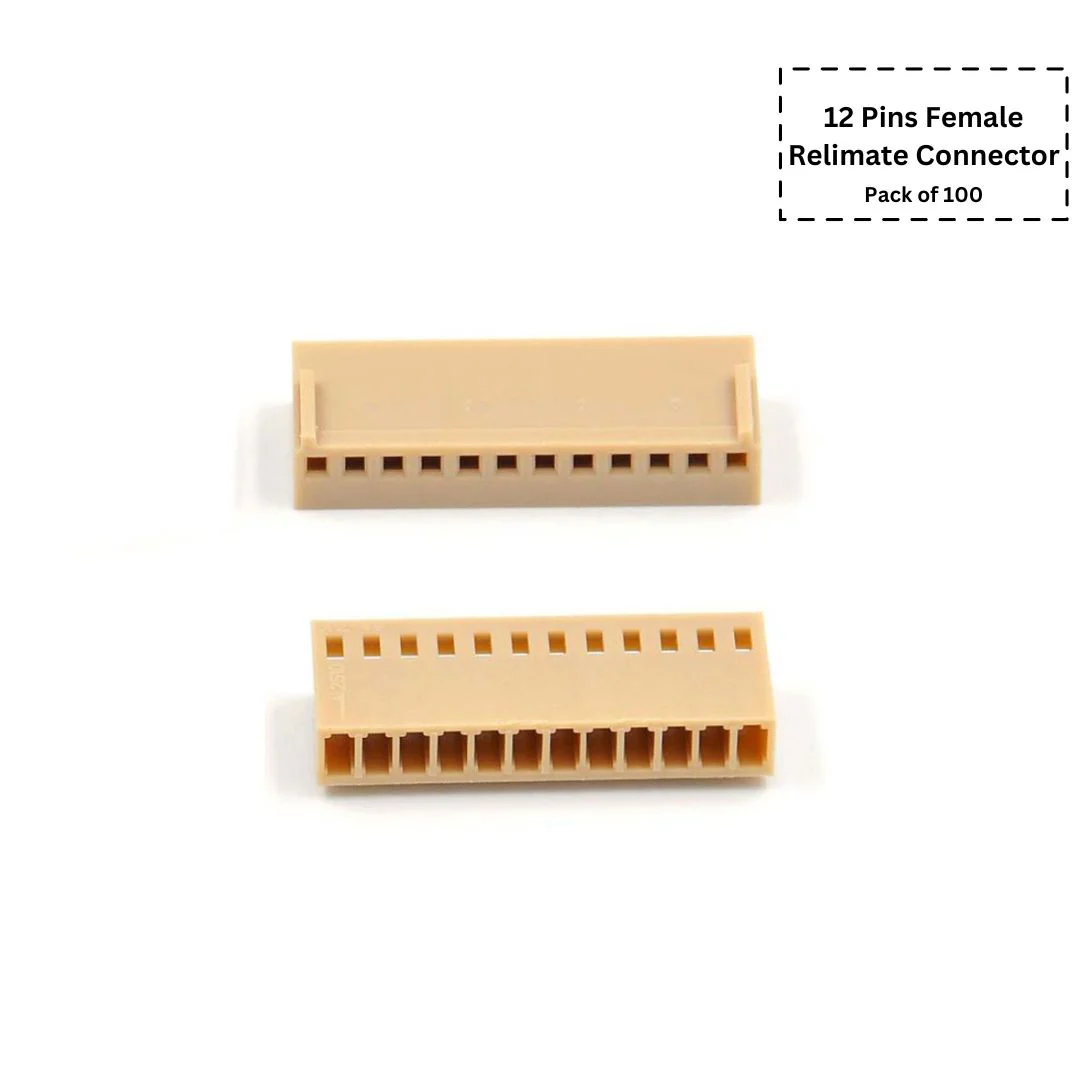

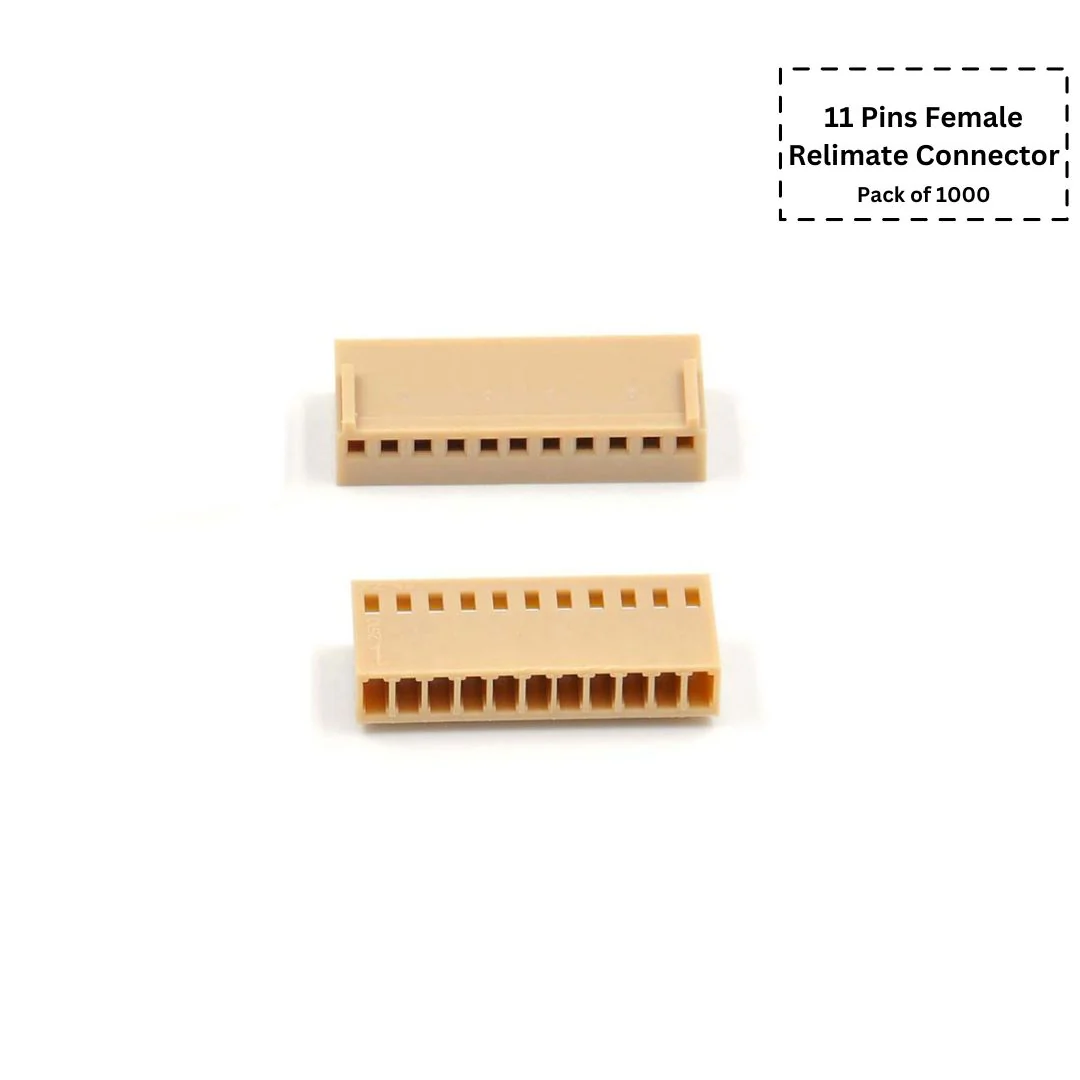

Female Relimate Connector

A female Relimate connector is designed to connect to the male connector, completing the circuit. It is often attached to the end of a wire or cable. The key features of a female Relimate connector include:

1. Receptacles: Holes or slots that accept the pins of the male connector. These are often spring-loaded or otherwise designed to ensure a snug, reliable connection.
2. Housing: Made from plastic or other insulating materials, the housing holds the receptacles in place and ensures they are correctly aligned.
3. Latch/Locking Mechanism: Many female Relimate connectors feature a latching mechanism to secure the connection and prevent accidental disconnection.
4. Cable Termination: The end of the connector that attaches to wires or cables, often featuring crimp or solder connections.

Applications

Relimate connectors are widely used in various electronic applications, including:

• Consumer Electronics: Connecting different modules within devices.
• Industrial Equipment: Ensuring reliable connections in harsh environments.
• Automotive: Providing secure electrical connections in vehicles.
• Prototyping and Development: Allowing easy connection and disconnection of components.

Benefits

• Reliability: Secure connections reduce the risk of disconnection or signal loss.
• Ease of Use: Simple to connect and disconnect, facilitating easy assembly and maintenance.
• Versatility: Available in various sizes and configurations to suit different needs.
• Durability: Designed to withstand multiple connection cycles and environmental stress.

Considerations for Use

When selecting Relimate connectors, it’s essential to consider factors such as current rating, voltage rating, pin count, pitch, and environmental conditions to ensure they meet the requirements of the specific application.
