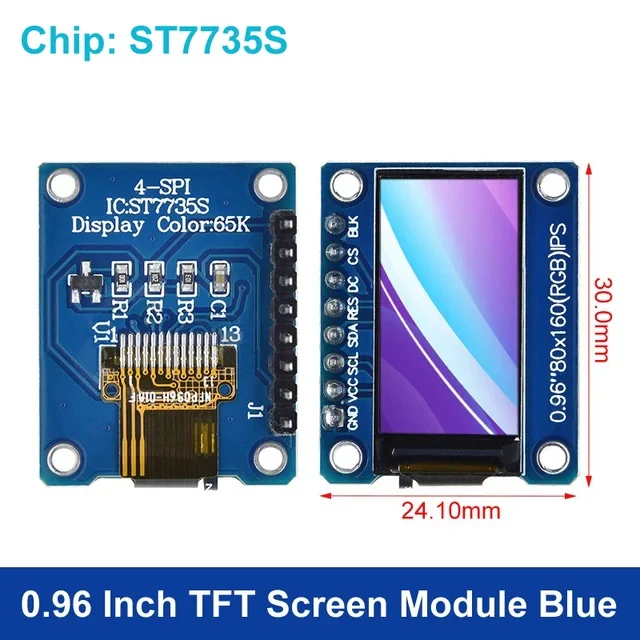

0.96 Inch 80*160 IPS TFT Module 8pin (with GND VCC) ST7735 Chip
The ST7735 and ST7789 are popular TFT (Thin Film Transistor) display modules used in various embedded applications. These modules are known for their vibrant color output, ease of interfacing through SPI (Serial Peripheral Interface), and compact size, making them suitable for a wide range of projects, from simple graphical displays to more complex user interfaces.
Specifications
- Display Controller: ST7735/ST7789
- Interface: SPI (Serial Peripheral Interface)
-
Resolution:
- ST7735: Typically 128x160 pixels
- ST7789: Typically 240x240 pixels, sometimes available in 240x320 pixels
- Color Depth: 65K or 262K colors (16-bit or 18-bit color)
- Backlight: LED backlight with adjustable brightness
-
Voltage:
- Operating Voltage: 3.3V (Some modules may support 5V input with onboard voltage regulators)
- Logic Level: 3.3V (Use level shifters for 5V systems)
-
Size:
- ST7735: Commonly 0.96/1.8 inches
- ST7789: Commonly 1.3 to 2.4 inches
- Viewing Angle: Wide viewing angles due to TFT technology
- Operating Temperature: Typically -20°C to 70°C
Pin Configuration
- VCC: Power supply (3.3V)
- GND: Ground
- SCL: Serial Clock
- SDA: Serial Data (MOSI)
- RES: Reset
- DC: Data/Command Control
- CS: Chip Select
- BLK: Backlight Control (Optional, can be connected to VCC for constant backlight)
Features
- High Resolution and Color Depth: Provides clear and vibrant display suitable for rich graphical content.
- Compact and Lightweight: Suitable for portable and space-constrained applications.
- SPI Interface: Allows for high-speed data transfer and easy interfacing with microcontrollers like Arduino, ESP8266, ESP32, and Raspberry Pi.
- Wide Range of Libraries and Support: Numerous libraries available for different platforms to facilitate easy development (e.g., Adafruit GFX Library, TFT_eSPI Library).
Applications
- Handheld Devices
- Wearable Electronics
- Portable Medical Devices
- Home Automation Interfaces
- Industrial Control Panels
- Custom User Interfaces for Projects
