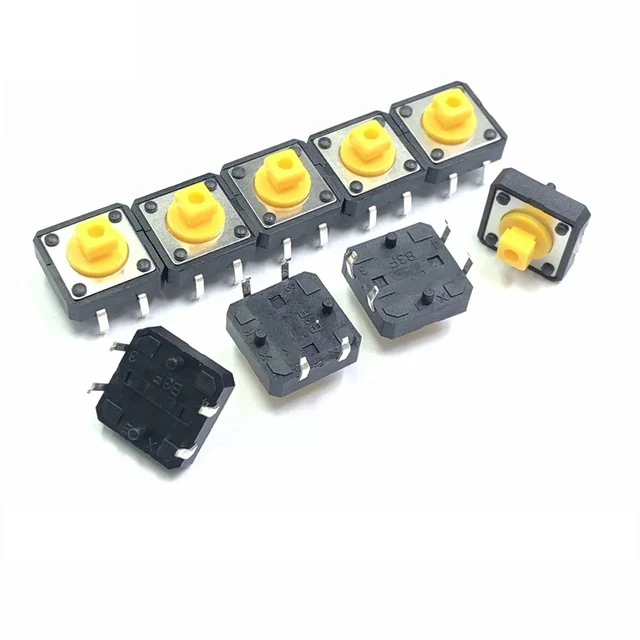

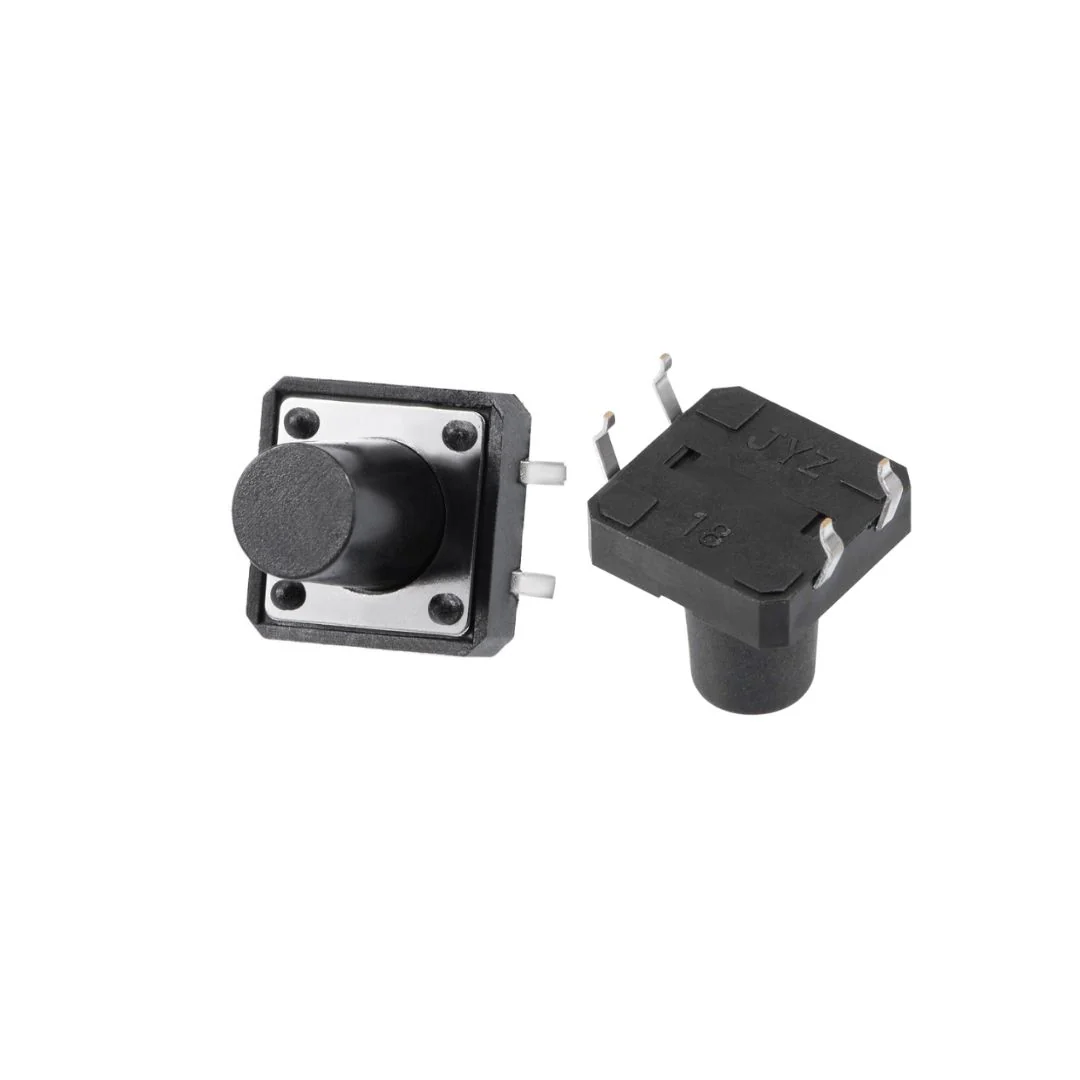

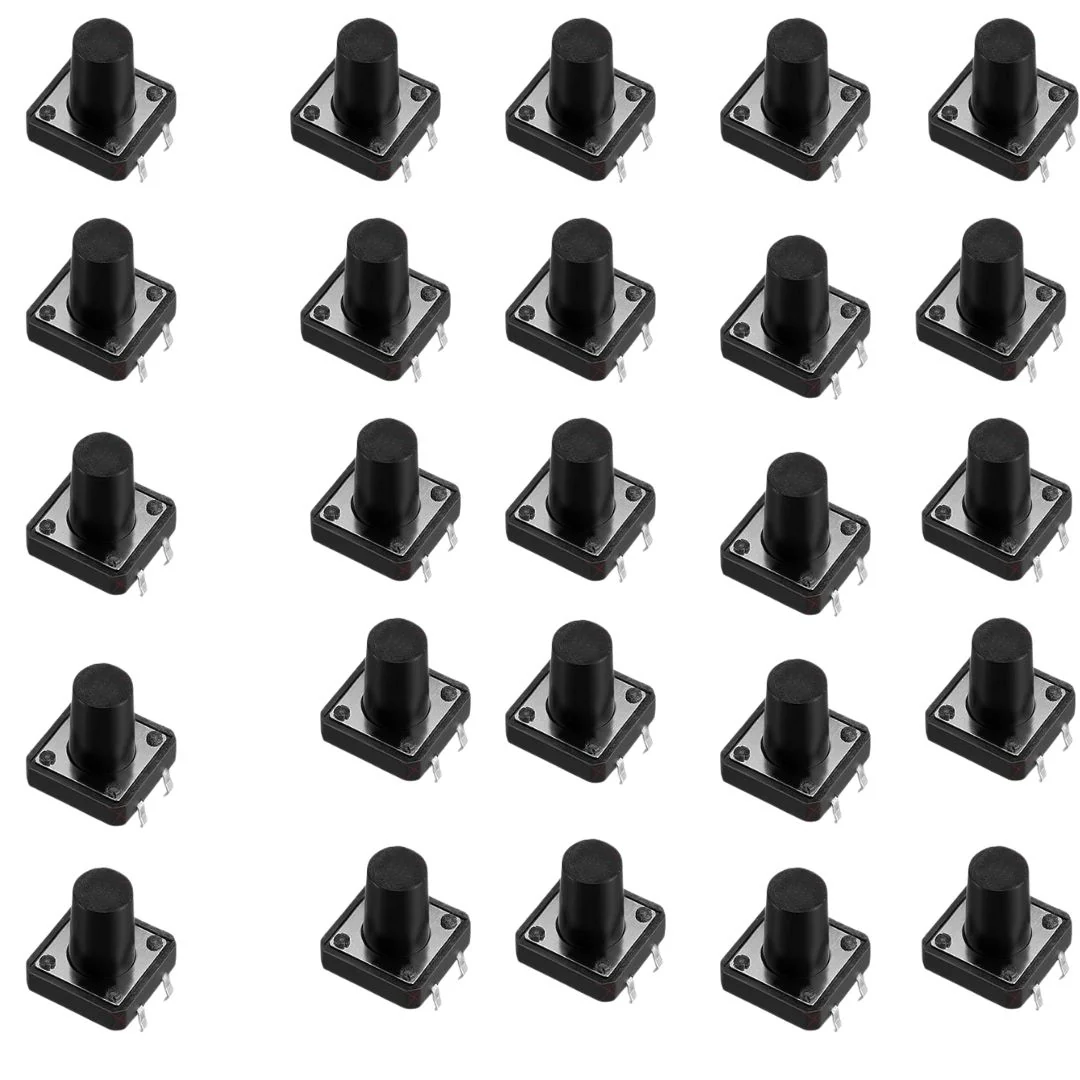

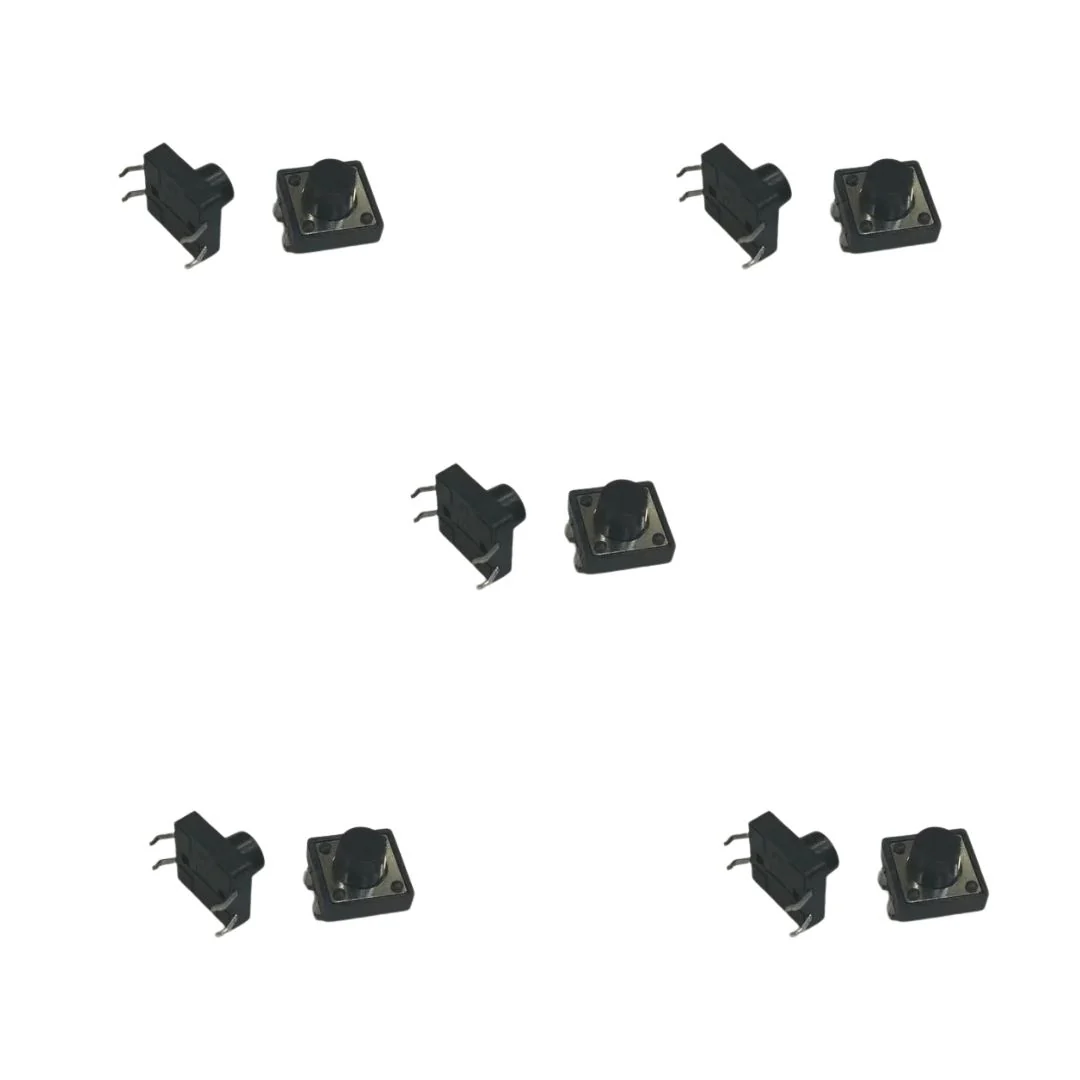

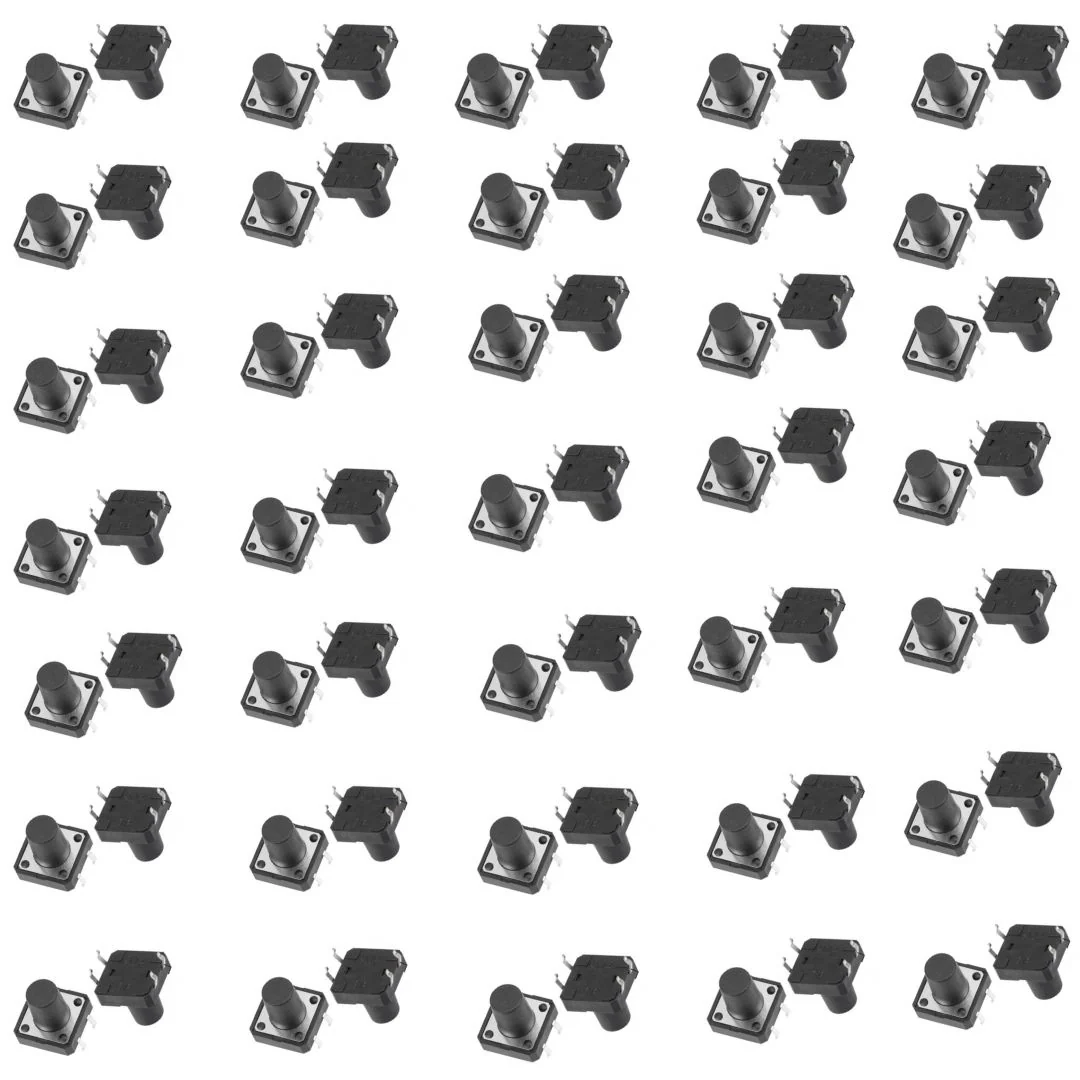

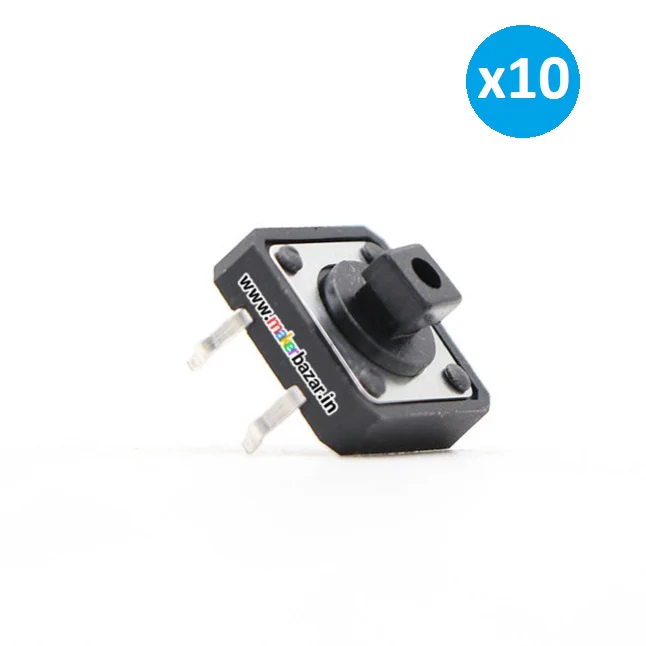

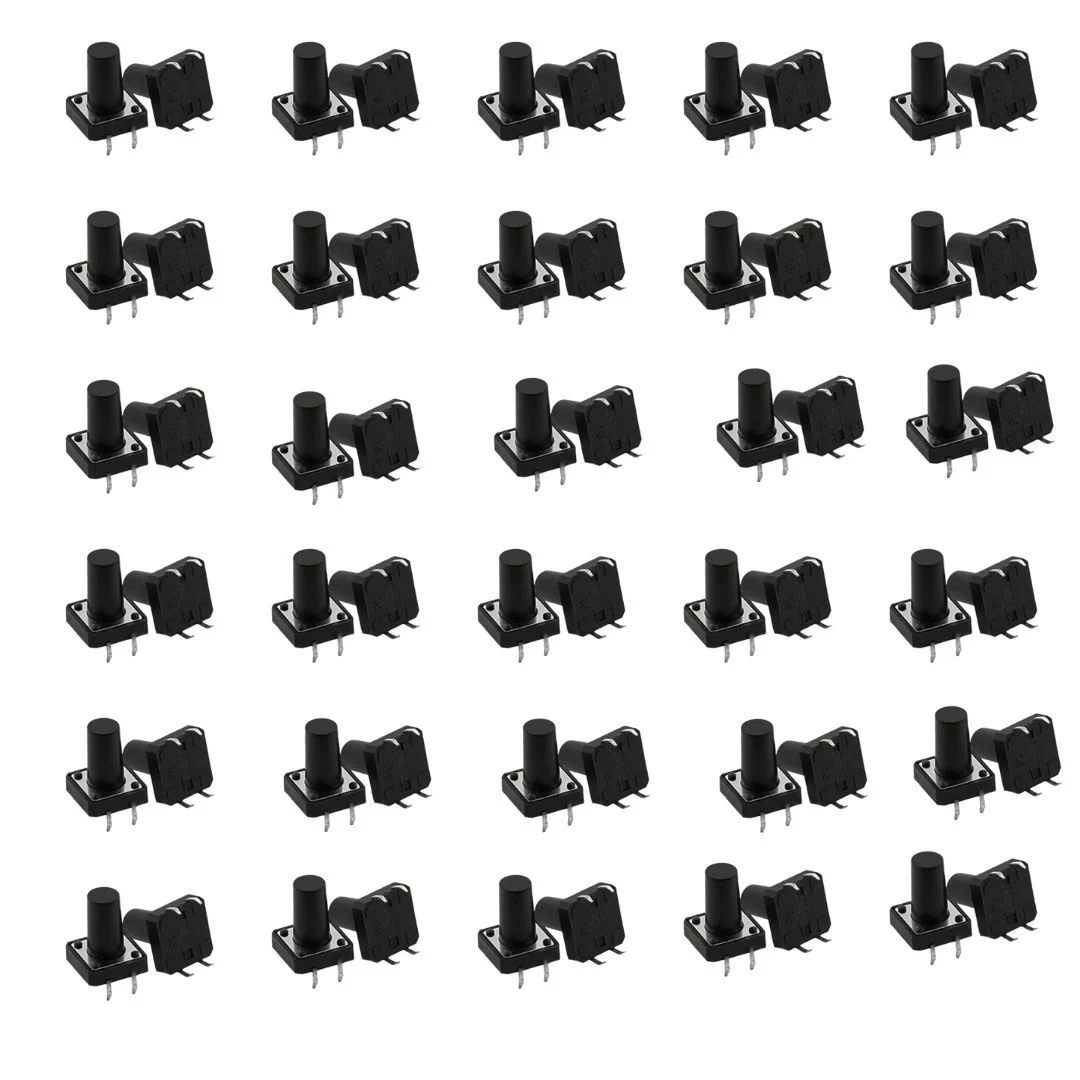

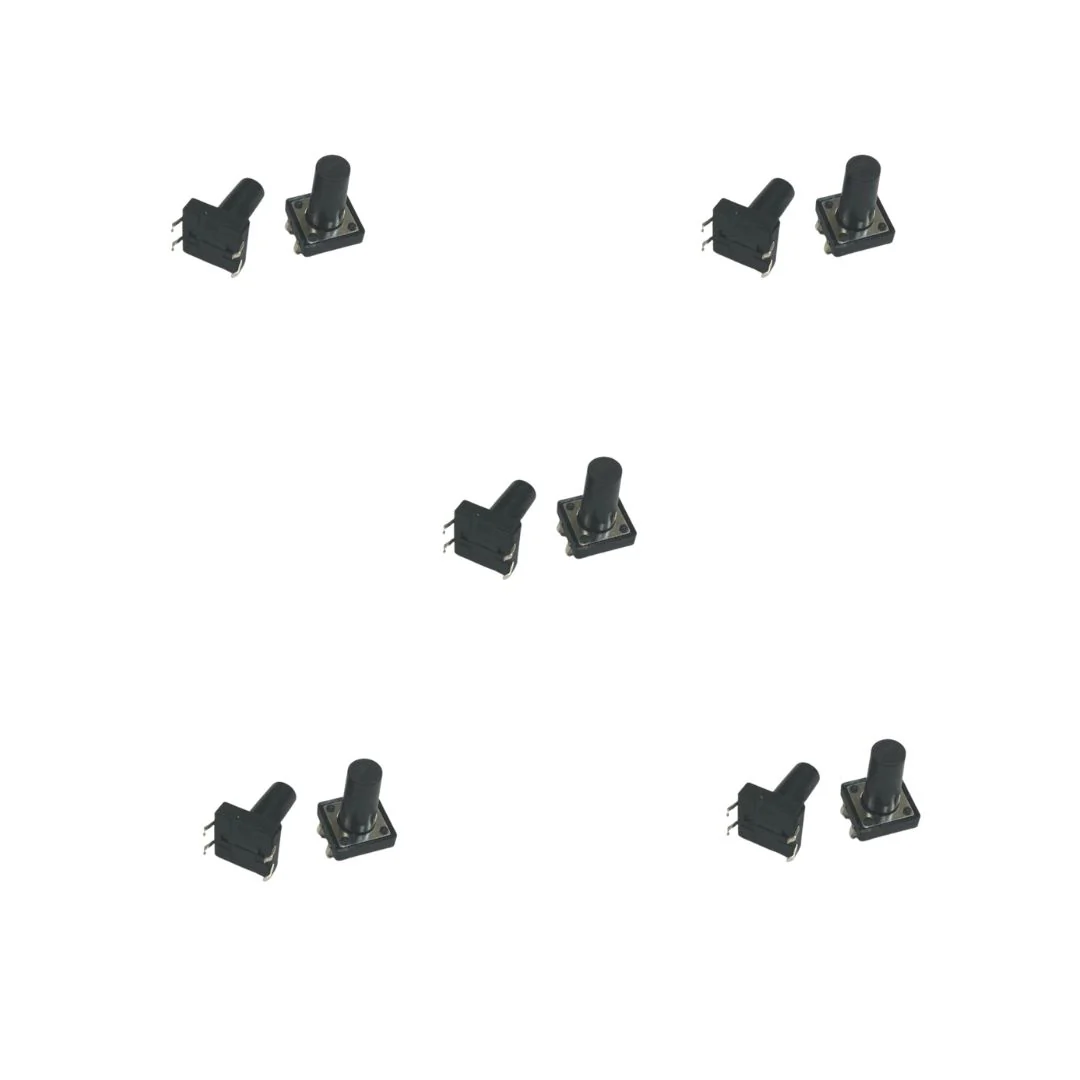

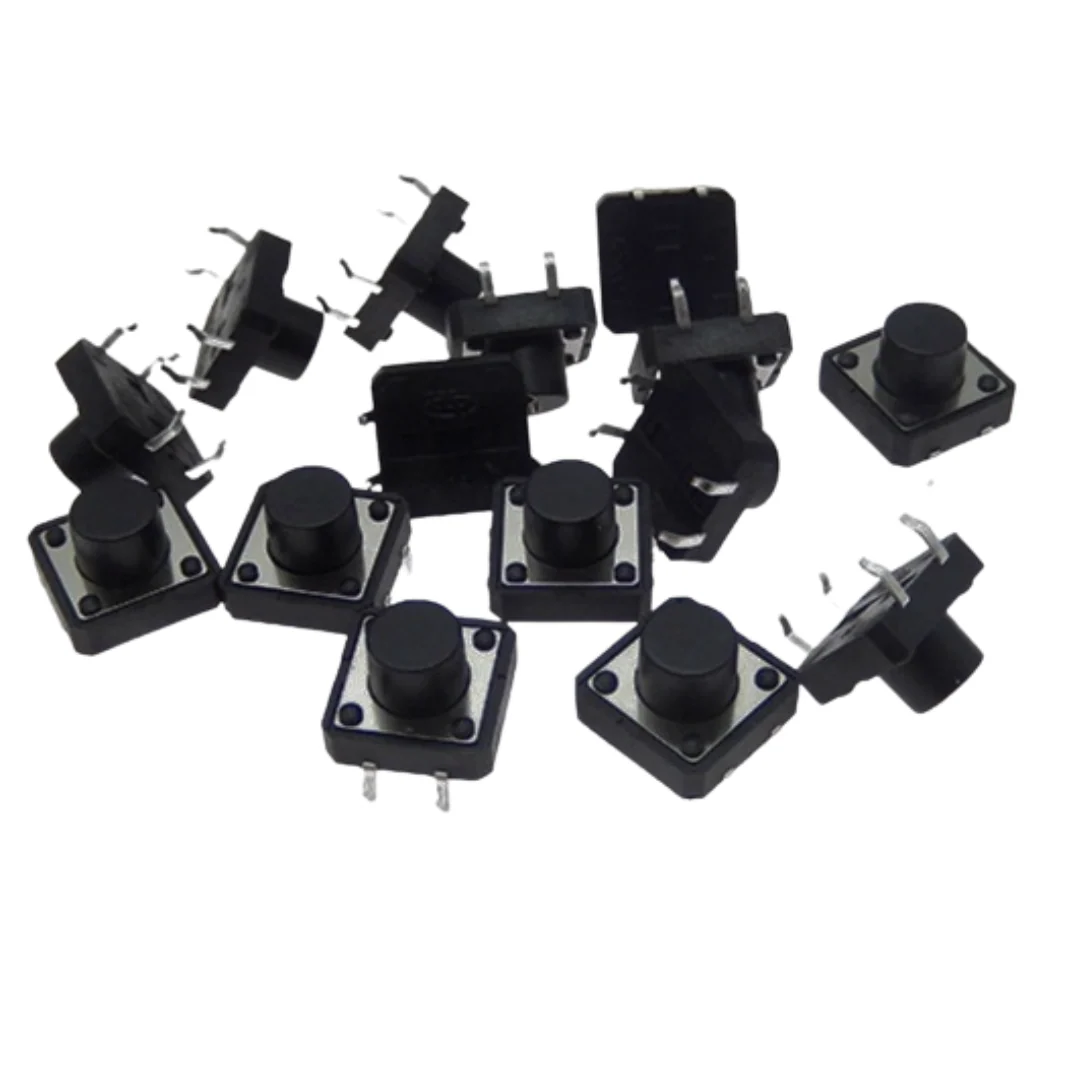

Square Shape Tactile Push Button Switch

Tactile Push Button Switch is a versatile and widely used component in electronic projects, serving as a standard input button. This switch is ideal for use on a PCB, but can also be used on a solderless breadboard for temporary connections during prototyping. When the button is pressed, the pins are momentarily closed, completing the circuit.

Featuring reliable dome contact technology and strong tactile feedback, this switch offers multiple operating forces to choose from, making it a popular choice for a wide range of applications. These include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.

Please note that the Tactile Push Button Switch does not come with a cap, but a separate cap can be sourced if required.

Features/Specs:

• Operating Voltage: 12VDC
• Operating Current: 50mA
• On/Off Function: Push to ON
• Switch Type: Momentary
• Mounting Type: Through-hole
• Contact Material: Aluminum alloy
• Contact Resistance: 50mΩ
• Insulation Resistance: 100MΩ
• Operating Temperature Range: -20°C to +70°C
• Operation Force: About 3-5N
• Operation Stroke: 1.05mm
• Body Material: Plastic
• Mech. & Electrical Life: 300,000 Cycles

Note:

• Product Images are shown for illustrative purposes only and may differ from the actual product.
• The tactile Push Button Switch Round Cap is not included
