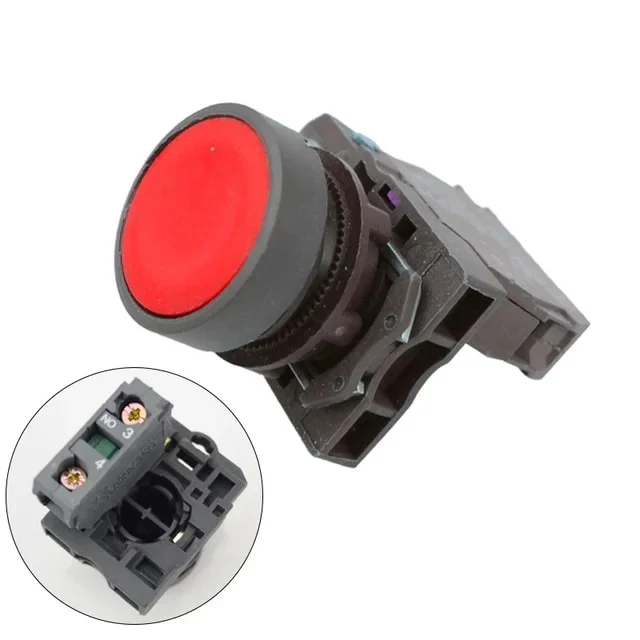

XB5 modular red push-button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push-button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance with clear colours and markings, minimizing errors during initial wiring and later maintenance operations. It is IP66 / IP67 / IP69 / IP69K impact resistant, dust resistant, water resistant and vibration resistant making it ideal for operation in harsh environments.



Model number: XB5-AA41,XB5-AA42,XB5-AA45

1. Silver alloy contacts
2. Operating voltage: <= 380AC or <= 220DC
3. Operational tempering: -25 to +55
4. Operational humidity: ≤ 85%
5. Power-frequency withstand voltage: 2500V AC, 1min
6. Contact resistance: <= 50mΩ
7. Mechanical durability: Monetary 1000, 000, serviceable 250, 000
8. Electrical durability: 500, 000
