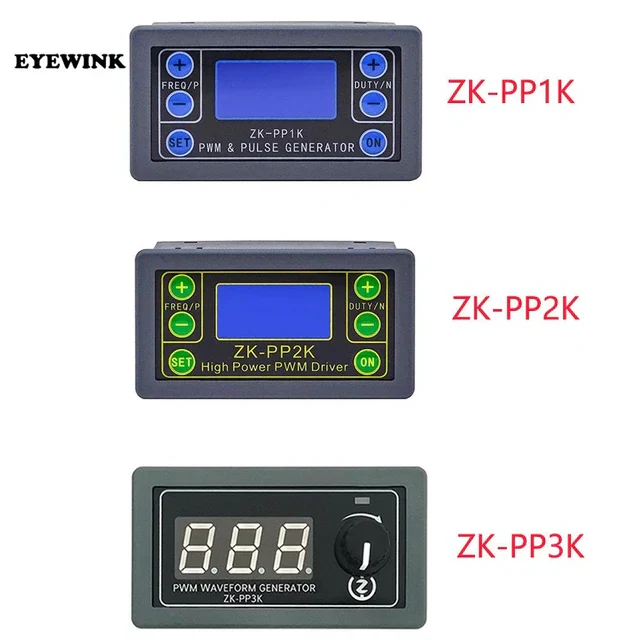

ZK PP1K PWM Signal Generator 1Hz-150KHz PWM Pulse Frequency Duty Cycle Adjustable Square Wave Generator

• Used to generate square wave rectangular wave signal to control DC motor or stepper motor driver; used for servo motor, stepper motor, electric clamping jaw, instead of PLC pulse, etc.
• Matching driver to achieve dimming, speed control, control solenoid valve, but can not directly drive the lamp motor solenoid valve and other loads
• Two modes can be selected: PWM mode a frequency (continuous) duty cycle. Note that the number of pulses can not be set in this mode, has been issued pulse; PULSE pulse mode a positive pulse width time, negative pulse width time, delayed start time, and the number of pulses adjustable
• With a start/stop button, also can be an external switch to control the output signal ON/OFF
• Wide voltage input 3.3-30V, with anti-reverse connection protection

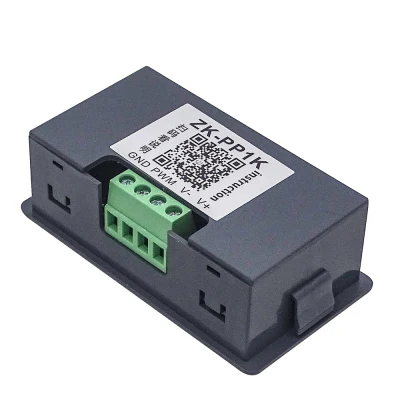

• 5.08mm screw type terminal for easy wiring, with housing

Specifications:

• Working voltage: 3.3~30V, with anti-reverse connection protection
• Frequency range: 1Hz~150KHz, accuracy 1% or so
• Duty cycle range: 0-100%, 1% step
• Number of pulses: 1-9999, or infinite
• Delay output time: 0.000s-9999s, lower limit can be set to 1ms
• Positive and negative pulse width length: 0.000s-9999s, the lower limit can be set to 1ms
• Signal carrying capacity: less than 30mA
• Output signal amplitude: the amplitude is equal to the supply voltage
